3" Shallow Low Voltage - Non-IC AT New Construction Housing

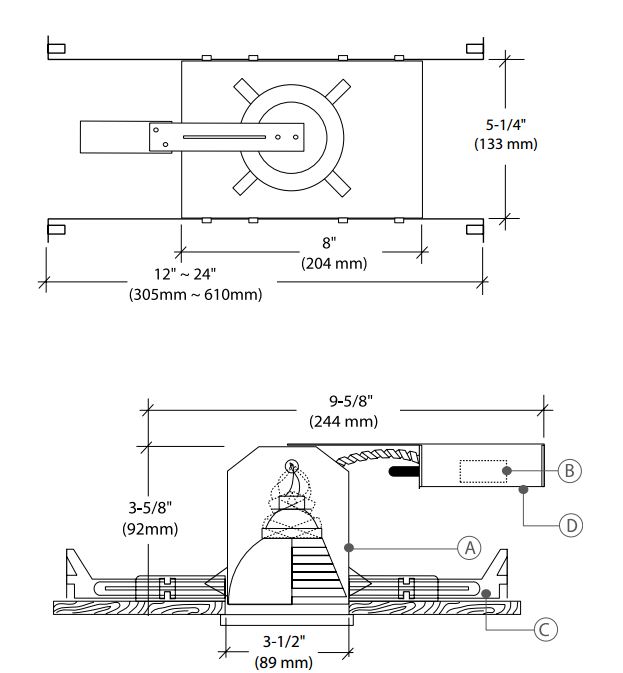

HOUSING - High temperature painted 22 gauge deep drawn single piece housing. Accommodates lamps up to 35W depending on trim used

INSTALLATION - Three preinstalled spring clips which secure the housing firmly into ceiling to accommodate different ceiling thickness from ½" to 1-3/8".

JUNCTION BOX - ETL listed for through-branch circuit wiring and has eight ½" KOs and four Romex knockouts with strain relief.

TRANSFORMER - Enhanced in heat dissipating cover, to provide noise free operation. Attached to junction box cover so it may be serviced from below the ceiling. Thermally protected Class II dimming electronic transformer.

BAR HANGERS - Preinstalled bar hangers allow housing to be positioned and locked at any point within a 24" joist span and can be shortened for 12" joists.


• Integral low voltage electronic transformer to eliminate noise and vibration, increasing lamp life and lighting quality.
• Thermally Protected Non-IC housing.
• Preinstalled adjustable bar hangers.
• Designed for accent and task lighting applications.
• Dependable, favorable design and effortless installation.
• 3-5/8" height allows use in 2" x 4" joist construction.
• Special screw on the frame locks bar hangers in place which prevents the housing from any movement once installed

OPTIONS
1. AIR-SHUT
• Gasket to prevent air flow from heated or air conditioned spaces.
• Meets all national air flow requirements.

ETL AND C-ETL LISTED
For Damp location
For Feed-through wiring
