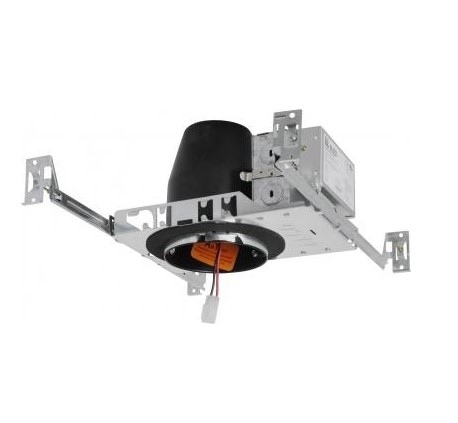

Part Number: E3LC08ICASD
3" IC Airtight Single Wall Housing with Driver.
Trims: ELCO Cedar System 3" LED Light Engines. Sold Separately!
Lumens - 850lm
Voltage - 120/277v
Dimmability - SunsetK
Height - 5 1/2"
Length - 9"
Width - 5 7/8"
- Single Wall IC Airtight for use in insulated ceilings
- Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
- UL Listed for direct contact with insulation
- Optional For Purchase: 90 Minute Battery Backup, 120/277 VAC, 60Hz (Call our Customer Support Line at 1-877-235-0020 for more information): Sold Separately!
- Optional For Purchase: ELCO Fire Resistance Accessories: Sold Separately!
- Flicker-Free Dimming, USA designed and assembled
- 2 at the end of the item number denotes Generation 2; Please note Gen 2 and Gen 1 are not cross compatible
- UL Listed for Damp Locations/Wet Locations with select trims
- UL Listed for Direct Contact with insulation and Combustible materials
- UL Listed for Feed Through
- CA Title 24
- 5 year limited factory warranty

-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
| Lumens | -
| 850LM | -
-
-
- Construction Type
-
| -
- Airtight-New Construction
| -
-
-
| Hanger Bars | -
- Spans Up To 24" And Can Be Repositioned 90°
-
| -
-
-
| Voltage | -
| 120/277V | -
-
-
- Warranty
-
| -
| 5 Year Limited Factory Warranty | -
-
-
- Knockouts
-
| -
| Seven (7) 1/2" Trade Size Conduit Knockouts, Two (2) 3/4" Knockouts, One (1) 3/8" Knockout, Four (4) Pry-Out Knockouts Slots | -
-
-
- Approval Type
-
| -
| UL - Damp Locations, UL - Wet location (with Select Trims), UL Listed - Feed Through wiring, CA Title 24, UL Listed For Direct Contact with Insulation and Combustible Materials | -
-
-
- Recessed Size
-
| -
3"-
| -
-
-
- Optional For Purchase
| -
| 90 Minute Battery Backup, 120/277 VAC, 60Hz (NOT Included) | -
-
-
| Dimmability | -
| Yes/SunsetK Dimming | -
-
-
- Dimensions
-
| -
- See Illustrations/See Spec Sheet
-
| -
-
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Construction/Installation
▪ Single Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. 850 Lumens.
▪ Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.
▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
▪ Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can be easily nailed to joists.
Junction Box
▪ Positioned to accommodate straight conduit runs.
▪ Seven (7) 1/2" trade size conduit knockouts, Two (2) 3/4" knockouts, Four (4) Pry-out knockout slots for easy romex installation.
▪ One (1) 3/8" Knockout. See installation sheet for detailed information
Hanger Bars / New Construction
▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams.
▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists.
Electrical
▪ Driver is rated for 120V and 277V input (120/277V). High efficiency driver with a power factor >0.95.
Dimmability
▪ SunsetK dimming. Sunset dimming is ELCO's dim-to-warm LED Technology. Sunset dimming allows the color temperature to become warmer as the product is dimmed.
Compatible Trims
▪ Compatible with - ELCO Cedar System 3" LED Light Engines.
Listing
▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims
▪ UL Listed for Feed Through. CA Title 24.
▪ UL Listed for Direct Contact with Insulation and Combustible Materials.
|
|
|
|
|
|
|
