Part Number: E6LRC08ICAD2

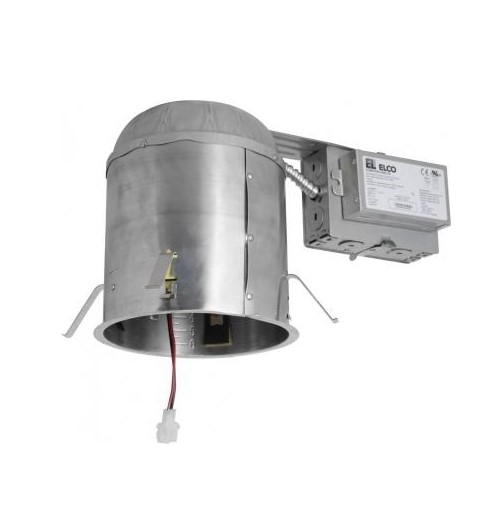

6" Cedar System Remodel IC Airtight Housing with Driver.
Trims: ELCO Cedar System 6" LED Light Engines. Sold Separately!
Lumens - 850lm
Voltage - 120/277v
Dimming - Triac/ELV/0-10V
Height - 7 1/2"
Length - 14 1/4"
- Single Wall IC rated for direct contact with insulation, for use in IC and non-IC conditions. Up to 1,250 lumens.
- Trims and inserts sold separately
- Optional For Purchase: 90 minute 120/277 VAC, 60Hz, Emergency Backup, Butterfly Bracket, Fire Resistance: Call our customer service line, 1-877-235-0020, for more info!
- 5 year limited factory warranty
- USA designed and assembled, Flicker Free Dimming
- 2 at the end of item number denotes Generation 2, please note Gen 1 and Gen 2 are not cross compatible
- UL Listed for Damp Locations/Wet Locations with select trims
- UL Listed for Direct Contact with insulation and Combustible materials
- UL Listed for Feed Through
- Meets CA Title 24 requirements

-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
| Compatibility | -
| For Use With ELCO Cedar System 6" LED Light Engines: Sold Separately! | -
-
-
- Construction Type
-
| -
- Airtight-Remodel
| -
-
-
| Other Information | -
| USA Designed and Assembled | -
-
-
| Fire Rated | -
| No/ELCO Fire Resistance Accessories Available For Purchase | -
-
-
- Warranty
-
| -
- 5 Year Limited Factory Warranty
| -
-
-
- Knockouts
-
| -
| Seven (7) 1/2" Trade Size Conduit Knockouts, Two (2) 3/4" Knockouts, One (1) 3/8" Knockout, Four (4) Pry-Out Knockouts Slots | -
-
-
- Approval Type
-
| -
| UL - Damp Locations, UL - Wet location (with Select Trims), UL Listed - Feed Through wiring, Meets CA Title 24 Requirements, UL Listed For Direct Contact With Insulation | -
-
-
- Recessed Size
-
| -
6"-
| -
-
-
| Lumens | -
| 850LM | -
-
-
- Voltage Rating
-
| -
| 120/277 Volts | -
-
-
- Dimmable
| -
| Triac/ELV/0-10V | -
-
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Construction/Installation
▪ Single Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. Up to 1,250 lumens.
▪ Suitable for T-grid and drop ceiling applications.
▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
▪ Designed for ceiling plenums where 2x8 joists or taller are used.
Junction Box
▪ Positioned to accommodate straight conduit runs.
▪ Seven (7) 1/2" trade size conduit knockouts, Two (2) 3/4" knockouts, One (1) 3/8" knockout.
▪ Four (4) Pry-outs knockouts slots for easy Romex installation. See installation sheet for detailed information
Emergency Battery Backup
▪ Optional: Up To 90 Minutes of Emergency Power Battery Backup with test indicator switch (double wall housings requires access from above): Sold Separately!
Electrical/Dimming
▪ Driver is rated for 120V and 277V input(120/277V). 3 in 1 Dimming: Triac, ELV, and 0-10V dimming in one driver. 0-10V dimming down to 5% with a compatible dimmer. Can be specified with Lutron drivers for 0.1% and 1% dimming. Flicker free dimming.
Compatible Trims
▪ Compatible with - For use with ELCO Cedar System 6" LED Light Engines.
Listing
▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims, UL Listed for Feed Through
▪ Meets CA Title 24 Requirements
▪ UL Listed for Direct Contact with Insulation and Combustible Materials.
|
|
|
|
|
|
|
