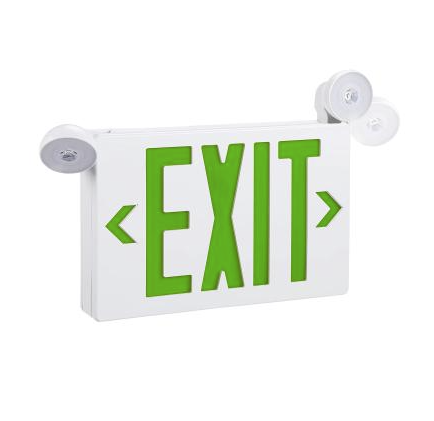

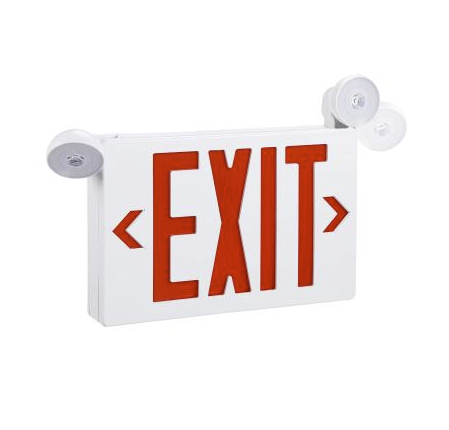

Part Number: EE86HRG
Part Number Description: Exit Sign/Emergency Light Combo
Non-Dimmable
120/277V AC Dual Voltage operation. Low power consumption 2.8 watts at normal operation (2 x 1w heads)
Injection-molded thermoplastic ABC and PC housing resists impacts, scratches, and corrosion
Red or Green Letters, 6" letter height with 3/4" stroke. Single/double face configuration
Two fully adjustable LED emergency heads
Universal back, side, or ceiling Mounting
Ni-Cad Battery 4.8V 1.0Ah. 90 minutes battery backup
Housing snaps to canopy with simple twist, locking it tightly and securely
Finish - White Housing/Green or Red Letters/Arrows
LISTED
• UL Listed
| Tech Specs |
|---|
|
| | | Voltage Rating | 120/277V | | Universal Mounting | Back, Side, Or Ceiling | | Single/Double Face | Both/Configurable | | Finish | White Housing/Red or Green Lettering/Arrows | | Emergency Operating Power | Battery Backup/Ni-CAD Battery, 4.8V, 1.0Ah/90 Minutes | | Power Consumption | 2.8 Watts at Normal Operation( 2 x 1W Heads) | | Housing Construction | Injection-Molded Thermoplastic ABC plastic | | Lens | Red or Green Lettering/Arrows | | Length | 11 13/16" | | Height | 9 1/2" | | Width | 1 13/16" | | Item Style | LED Exit Sign/Emergency Light Combo | | Certifications | UL Listed |
|
|
|
