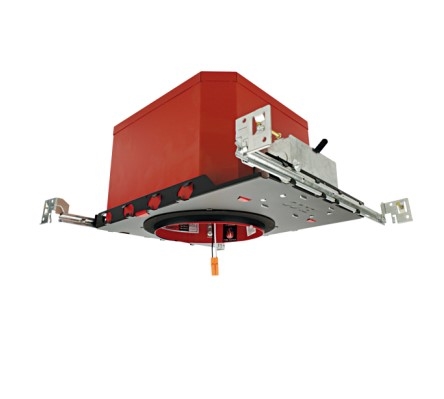

Part Number: EL75FICAS
6" LED Shallow Fire Rated ICA New Construction housing. 2-Hour fire rated.
Trims: ELCO 6" LED inserts: Sold Separately!
Wattage - 24w Max
Voltage - 120/277v, 60Hz
Height - 6 3/16"
Length - 12 1/2"
Width - 9"
- Double Wall IC Airtight for direct contact with insulation, for use in IC and Non-IC conditions
- Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
- Trims and inserts sold separately
- For Use in insulated ceilings
- Emergency Battery Pack: Optional 90 minute battery pack available with test indicator switch. Note that double wall housings require Access from above ceiling for battery maintenance
- Housing meets restricted air flow requirements (per ASTM E-283)
- UL Listed for Damp Locations/Wet Locations with select trims
- UL Listed for Direct Contact with insulation and Combustible materials
- UL Listed for Feed Through, Sound Rated
- UL Listed for 2-hour Fire Resistance to meet and exceed strict fire safety codes
- Meets CA Title 24 High Efficacy requirements

-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
| Step-Down Transformer | -
| NO | -
-
-
- Construction Type
-
| -
| Shallow Fire Rated ICA New Construction | -
-
-
| Hanger Bars | -
- Spans Up To 24" And Can Be Repositioned 90°
-
| -
-
-
| Fire Rated | -
- 2-Hour Fire Resistance
| -
-
-
| Manufacturer Recommendations | -
| For Use In Insulated Ceilings | -
-
-
- Knockouts
-
| -
| Seven (7) 1/2" Trade Size Conduit Knockouts, Two (2) 3/4" Knockouts, One (1) 3/8" Knockout, Four (4) Pry-Out Knockouts Slots | -
-
-
- Approval Type
-
| -
| UL - Damp Locations, UL - Wet location (with Select Trims), UL Listed - Feed Through wiring, Meets CA Title 24 Requirements, Sound Rated | -
-
-
- Recessed Size
-
| -
6"-
| -
-
-
- Wattage
-
| -
| 24 Watt Max. | -
-
-
- Voltage Rating
-
| -
| 120/277 Volts | -
-
-
- Dimensions
-
| -
- See Illustrations/See Spec Sheet
-
| -
-
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Construction/Installation
▪ Double Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions.
▪ Housing accommodates up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.
▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
▪ Designed for ceiling plenums where 2x8 joists or taller are used.
Junction Box
▪ Positioned to accommodate straight conduit runs.
▪ Seven (7) 1/2" trade size conduit knockouts, Two (2) 3/4" knockouts, One (1) 3/8" knockout.
▪ Four (4) Pry-outs knockouts slots for easy Romex installation. See installation sheet for detailed information
Hanger Bars / New Construction
▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams.
▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists.
Emergency Battery Backup
▪ Optional: Up To 90 Minutes of Emergency Power Battery Backup: Sold Separately!
Step-Down Transformer
▪ Not Included
Compatible Trims
▪ Compatible with - Designed for use with ELCO 6" LED Inserts, LED Modules, or PSA37 with 6" MR16 Trims.
Listing
▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims, UL Listed for Feed Through
▪ Sound Rated. Meets CA Title 24 Requirements
▪ UL Listed for Direct Contact with Insulation and Combustible Materials.
|
|
|
|
|
|
|
