Part Number: 10896
Part Number Description: EEBN15WUA050
Wattage - 15w
Input Power - 7w (max)
Input Voltage - 120-277V
Output Voltage - 25-50VDC
Constant Lumen Output For 90 Minutes - 1,500lm (Fixture Efficacy 100LM/W)/1,875LM (Fixture Efficacy 125LM/W)
Emergency Operation - 90 Minutes
Recharge - 24 hrs

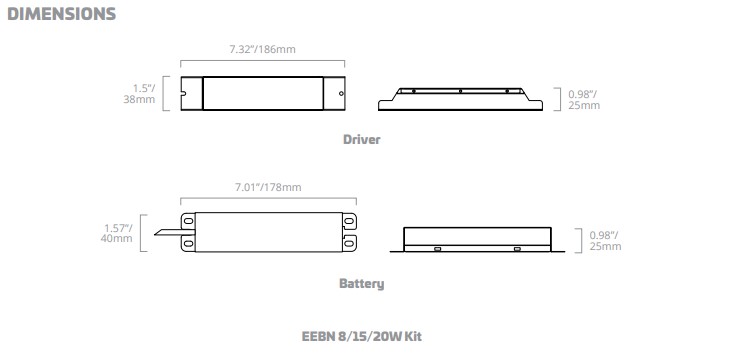

Driver Dimensions:
Height - 0.98" (25mm)
Width - 1.5" (38mm)
Length - 7.32" (186mm)
Battery Dimensions:
Height - 1.54" (39mm)
Width - 2.32" (59mm)
Length - 12.32" (313mm)
- An LED emergency battery driver that allows the same LED fixture to be used for both normal and emergency operation
- Self-diagnostic circuitry performs annual/monthly testing automatically reducing maintenance costs
- Auto-adjusting Class 2 25-50VDC output accommodates a wide range of forward voltage LED designs
- Constant power design provides constant light output for 90 minutes, long-life, maintenance-free, high temperature, recyclable lithium battery
- Two different form factors allow for greater flexibility when adding to fixtures
- UL Listed for Field Installation, Meets CEC Title 20 (California Energy Commission) efficiency standards, FCC Compliant, cULus Listed, Dry/Damp Locations
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
| Item Type | -
| Emergency Battery Kit Internal | -
-
-
| Listings | UL Listed For Dry/Damp Locations, Meets CEC Title 20 Efficiency Standards, UL Listed For Field Installation | -
-
-
| Manufacturer | -
| EiKO Lighting | -
-
-
| California Title 20 | -
| Meets CEC Efficiency Standard | -
-
-
| Wattage | -
| 15 Watts | -
-
-
| Input Voltage | -
| 120-277V 50/60HZ | -
-
-
| Manufacturer | -
| EiKO | -
-
-
| Output Voltage | 25-50VDC | -
-
-
| Emergency Power/Recharge | -
| 90 Minutes/24 Hours | -
-
-
| Operating Temperature | -
32°F (0°C) To 122°F (50°C)
| -
-
-
| Input Power | -
| 7 Watt (Max) | -
-
-
| Power Factor | -
| >0.85 | -
-
-
| Constant Lumen Output | -
| 1,500lm (100LM/W Fixture Efficiency)/1,875LM (125LM/W Fixture Efficiency | -
-
-
-
|
|
|
|
