2" Low Voltage Recessed Housing - Drop Ceilings - 12 volt


Elite BL20N-50-E-120-AT
CUSTOMER REVIEWS


Alternative Views:


Price: $49.50
Everyday lowest price regardless of quantity!


Free Shipping
Qty:

Description Technical Specs Shipping Time

Part Number: US-REL20N-50-E-120-AT

Wattage - 50w max.
Input Voltage - 120v
Output Voltage - 12v
Bulb Type - MR16 / 20W-50W
Transformer - Class II Dimmable Electronic

Length - 12.5" - 24.0"
Width - 5.0"
Height - 4.25"

Small aperture low voltage, thermally protected, new construction housing. Three remodel clips which can be accessed from below the ceiling are easily retractable for fixture removal if necessary. Use up to a 50 watt MR16 12 volt lamp. Furnished with pre-installed adjustable bar hangers. Junction box is provided with three 1/2" Knock Outs.

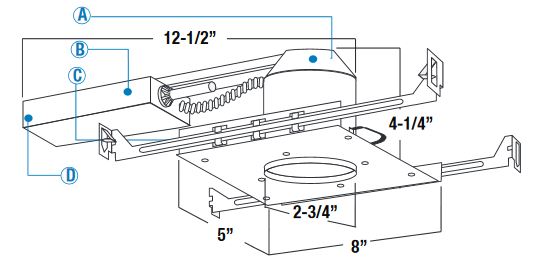

Features
    • A. HOUSING - High-tempered twenty-two (22) gauge deep drawn single piece aluminum housing. Accommodates lamps up to 50watt depending on trim used.
    • B. TRANSFORMER - Class II electronic transformer placed in heat dissipating cover that is attached to junction box.
    • C. BAR HANGERS & FRAME- Pre-installed bar hangers on plaster frame allow housing to be positioned and locked at any point within a 24" joist span. They are designed to be hammered directly without using nails or screws and could be fit onto T-bar spline for easy installation and quick alignment.
    • D. JUNCTION BOX - Is ETL listed for through-branch circuit wiring and has 3 - 1/2" KO's.

  • OTHER FEATURES
    • Integral low voltage electronic transformer to prolong lamp life and increase lighting quality.
    • Thermally Protected Non-IC housing
    • Can be installed from below the ceiling
    • Designed for accent and task lighting applications
    • Dependable, favorable design and effortless installation
    • 4-¼" height allows use in 2"x 6" joist construction
    • Preinstalled adjustable bar hanger
