Part Number: HD407V-CR
H-Line: Bi Level Detachable Motion Sensor
Operating Voltage - 120-277Vac, 50/60Hz
Switching capacity - Max. 3.0A @ 120Vac, 50/60Hz, Max. 2.0A @ 277Vac, 50/60Hz
Stand-By Power - >1W

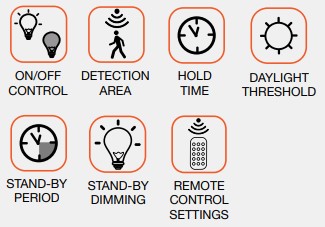

Detection Area - 50% / 100%
Hold Time - 5s / 30s / 1min / 10min
Daylight Threshold - 2Lux / 10Lux / 50Lux / Disable
Stand-By Period - 0s / 30s / 20min +
Stand-By Dimming Level - 10% / 20% / 30% / 50%
Microwave Frequency - 5.8GHz + 75 MHz
Microwave Power - <0.3mW
Interfaces - 6-pole pluggable clamp terminal (L,N,N,L,1-10V+,1-10V-)
Mounting Height - Max. 6m(Ceiling Mounted); Max. 3m(wall mounted)
Detection Range - Max.14m(Ceiling Mounted); Max. 10m(Wall Mounted)
Operating Temperature: -20°C to +60°C
Detection Angle - 30° - 150°
IP Rating - IP20
- 5.8GHz microwave motion sensor with dimmable function
- Suitable for tri-proof light
- Tri-level control by 1-10V output
- Detachable version flexible installation
- Remote control
- 5 year limited factory warranty
|
|
|
