Part Number: LED-ALIN2-2FT-3P25-D-5CCT-WH
0-10V/Dimmable (Dim-To-Off/Flicker Free)
Selectable Wattage - 20/15/10w
Voltage - 120-277v
Lumens - 2,400/1,800/1,200lm
Selectable CCT - 27/30/35/40/50K
Beam Angle - 110°
Projected Life (L70) - 50,000 Hours
Finish - White
Length - 2' (ft)
Width - 2"
Height - 4"

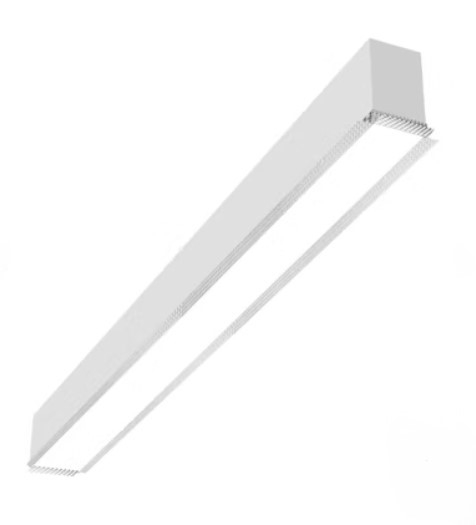

Elevating the architectural integrity of your smaller spaces is effortless with the EnVisionLED - LED-ALIN2-2FT-3P25-D-5CCT-WH-TML - ARCY-LINE: 2' Architectural Linear Fixture (Trimless) - 2' - 20/15/10W - 5-CCT 27/30/35/40/50K - 120-277V - White from USA Light. This 2-foot trimless unit is designed to be mudded directly into drywall, providing a seamless transition from ceiling to light that many designers consider the best interior lighting for minimalist corridors and high-end executive suites. As a premier contractor lighting supplier, we provide this LED lighting to ensure your custom builds feature a clean, flange-free finish.
Choosing to shop with us gives you access to industry-leading technical expertise, fast shipping, and a comprehensive inventory of wholesale commercial lighting. This commercial interior lighting powerhouse offers 5-CCT selectable technology and triple-wattage settings, allowing for on-site customization of any atmosphere. Whether you are layering your design with low-voltage interior lighting accents or installing a 120-277V architectural system, our commitment to quality ensures your project receives the durable, high-performance illumination it deserves. Order today.
- The EnVisionLED ARCY-Line Architectural Linear Fixtures (Trimless) offer a 2" sleek and modern appearance with symmetrical light distribution. They can be surface, wall, recess, trim-less, or pendant mounted.
- Lens: Acrylic Frosted Lens Standard: efficiently emits the light through a high-quality acrylic lens, spreading it evenly and without causing glare - Optional Louver available (added fee's may apply)
- One piece aluminum extrusion housing that incorporates a precisely cut, smooth white extruded frosted lens that securely attaches to the body and allows easy removal for accessing the driver and LED board when needed.
- Solid aluminum end caps are included, Finished with corrosion free powder coat
- Fixture is pre-wired for daisy chain, No additional wiring is required for continuous run, Connector Brackets to link fixtures in a continuous run is included, Trimless Mount (can be serviced from below ceiling)
- ETL Listed, DLC Standard Listed, Approved For CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Damp Location (IP44)
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating/Type
| -
- 120-277V
| -
-
-
| Finish | -
| White | -
-
-
| Selectable Wattages | -
| 20 Watts/15 Watts/10 Watts | -
-
-
- Dimmable
| -
| YES/0-10V/Dim-To-OFF/Flicker Free | -
-
-
- Lumens
-
| -
| 2,400LM/1,800LM/1,200LM | -
-
-
| Selectable CCT | -
| 2700K/3000K/3500K/4000K/5000K | -
-
-
- CRI
-
| -
| >90 | -
-
-
- Projected Life (L70)
| -
50,000 Hours-
| -
-
-
| Thermal | -
- -4°F to 122°F
| -
-
-
- Lens
| -
| Frosted Acrylic | -
-
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Pre-Installed Factory Add-On's (Fee's and Lead Times Vary):
90 Minute Emergency Backup
Bi-Level Motion and Daylight Sensor
SG-20KV-UNV: 20KV Surge Protector
Paint: Black, White, Gray Standard. Custom RAL Available
Call Our Customer Service Line For More Information: 1-877-235-0020
|
|
|
|
|
|
|
