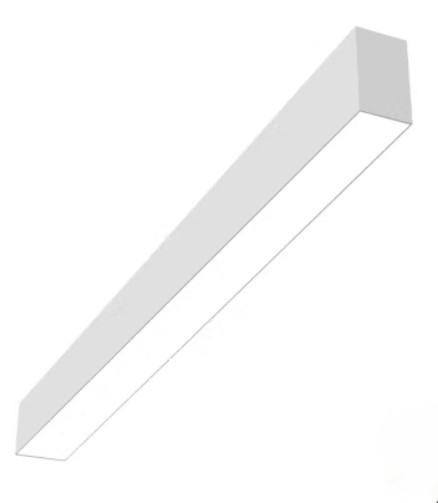

Part Number: LED-ALIN2-3FT-3P38-D-5CCT-WH
0-10V Dimmable
Linear Architectural Luminaire
3' Linear Downlight
Selectable Wattage - 30/22.5/14.5W
Voltage - 120-277V
Selectable CCT - 27/30/35/40/50K
Lumens - 3,600/2,700/1,800lm
Shape - Straight Linear 110° Downlight
Avg. Rated Life (L70) - 50,000 Hours
Finish - White
Length - 3'
Height - 4"
Width - 2"
- The EnVisionLED ARCY-LINE Direct/Indirect Architectural luminaires offer a 2" sleek and modern appearance with symmetrical light distribution.
- Lens: Acrylic Frosted Lens Standard: efficiently emits the light through a high-quality acrylic lens, spreading it evenly and without causing glare - optional louver available
- Construction: One piece aluminum extrusion housing that incorporates a precisely cut, smooth white extruded frosted lens that securely attaches to the body and allows easy removal for accessing the driver and LED boards when needed.
- Solid Aluminum end caps are included, Finished with corrosion free powder coat
- Fixture is pre-wired with or easy daisy chain, No additional wiring is required for continuous runs
- Connector brackets to link fixtures in a continuous run is included, Max run: 600W off one power feed
- ETL Listed, DLC Standard Listed, Approved for CA T24, IP Rating: Damp Location (IP44), FCC CFR 47, GCC Part 15, Subpart
-
-
-
-
-
| Tech Specs |
|---|
|
| | | Voltage | 120-277V | | Selectable Wattage | 30 Watts/22.5 Watts/14.5 Watts
| | Lumens | 3,600LM/2,700LM/1,740LM | | Dimmable | YES/0-10V | | Selectable CCT | 2700K/3000K/3500K/4000K/5000K | | CRI | >90 | | Finish | White | | Rated | Damp Location Rated | | Warranty | 5 Year Limited Factory Warranty | | Item Type | 3' Architectural Linear Fixture (Downlight) |
| -
-
-
|
|
|
|
 |
|
 |
|
