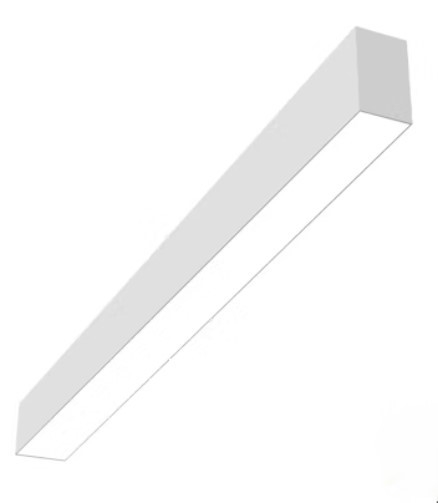

Part Number: LED-ALIN2-3FT-3P38-UD-5CCT-WH
0-10V Dimmable
Linear Architectural Luminaire
3' Linear Downlight
Selectable Wattage - 37.5/28/18W
Voltage - 120-277V
Selectable CCT - 27/30/35/40/50K
Lumens - 4,560/3,500/2,250lm
Shape - Straight Linear 110° Up and Downlight
Avg. Rated Life (L70) - 50,000 Hours
Finish - White
Length - 3'
Height - 4"
Width - 2"
Optimizing a compact workspace requires the precision and versatility found in the EnVisionLED - LED-ALIN2-3FT-3P38-UD-5CCT-WH - ARCY-LINE: 3' Architectural Linear Fixture (Up and Downlight) - 37.5/28/18W - 5-CCT 27/30/35/40/50K - 120-277V - White from USA Light. This 3-foot powerhouse delivers both upward and downward illumination, creating a layered effect that eliminates harsh shadows and softens the overall environment. As a premier contractor lighting supplier, we offer this LED lighting to professionals who need to balance high-performance output with a refined, modern aesthetic.
These fixtures represent the best interior lighting for interior designers, facility managers, and electrical contractors working on boutique offices, residential study areas, or specialized retail nooks. By sourcing through our wholesale commercial lighting inventory, you benefit from 5-CCT selectable technology and triple-wattage controls. This commercial interior lighting solution is a top choice for those seeking the flexibility of low-voltage interior lighting compatibility within a robust 120-277V architectural frame, ensuring a perfect fit for any sophisticated small-to-medium scale project. Order today.
- The EnVisionLED ARCY-LINE Direct/Indirect Architectural luminaires offer a 2" sleek and modern appearance with symmetrical light distribution.
- Lens: Acrylic Frosted Lens Standard: efficiently emits the light through a high-quality acrylic lens, spreading it evenly and without causing glare - optional louver available
- Construction: One piece aluminum extrusion housing that incorporates a precisely cut, smooth white extruded frosted lens that securely attaches to the body and allows easy removal for accessing the driver and LED boards when needed.
- Solid Aluminum end caps are included, Finished with corrosion free powder coat
- Fixture is pre-wired with or easy daisy chain, No additional wiring is required for continuous runs
- Connector brackets to link fixtures in a continuous run is included, Max run: 600W off one power feed
- ETL Listed, DLC Standard Listed, Approved for CA T24, IP Rating: Damp Location (IP44), FCC CFR 47, GCC Part 15, Subpart
-
-
-
-
-
| Tech Specs |
|---|
|
| | | Voltage | 120-277V | | Selectable Wattage | 37.5 Watts/28 Watts/18 Watts
| | Lumens | 4,560LM/3,500LM/2,250LM | | Dimmable | YES/0-10V | | Selectable CCT | 2700K/3000K/3500K/4000K/5000K | | CRI | >90 | | Finish | White | | Rated | Damp Location Rated | | Warranty | 5 Year Limited Factory Warranty | | Item Type | 3' Architectural Linear Fixture (Up and Downlight) |
| -
-
-
|
|
|
|
 |
|
 |
|
