Part Number: LED-ALIN2-4FT-3P50-D-5CCT-TML
0-10V/Dimmable (Dim-To-Off/Flicker Free)
Selectable Wattage - 40/30/20w
Voltage - 120-277v
Lumens - 4,800/3,600/2,400lm
Selectable CCT - 27/30/35/40/50K
Beam Angle - 110°
Projected Life (L70) - 50,000 Hours
Finish - White
Length - 4' (ft)
Width - 2"
Height - 4"

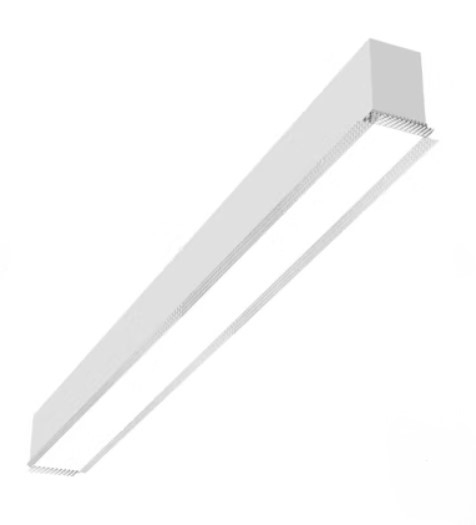

Achieving a flawless, integrated ceiling appearance is effortless with the EnVisionLED - LED-ALIN2-4FT-3P50-D-5CCT-WH-TML - ARCY-LINE: 4' Architectural Linear Fixture (Trimless) - 4' - 40/30/20W - 5-CCT 27/30/35/40/50K - 120-277V - White from USA Light. This trimless design disappears into the drywall, creating a clean, high-end look that defines the best interior lighting for luxury retail and modern office galleries. As a premier contractor lighting supplier, we provide this LED lighting to professionals who demand precision and performance.
The core characteristics of this fixture include a recessed profile that eliminates visible flanges and a 5-CCT selectable switch for ultimate color flexibility. This commercial interior lighting powerhouse offers three wattage settings, ensuring you can calibrate the brightness to the exact needs of the room. When you source wholesale commercial lighting of this caliber, you benefit from a 120-277V universal driver and superior color rendering. Whether your specifications call for low-voltage interior lighting compatibility or a robust architectural statement, this trimless linear solution provides a smooth, shadow-free output that enhances any contemporary environment. Order today.
- The EnVisionLED ARCY-Line Architectural Linear Fixtures (Trimless) offer a 2" sleek and modern appearance with symmetrical light distribution. They can be surface, wall, recess, trim-less, or pendant mounted.
- Lens: Acrylic Frosted Lens Standard: efficiently emits the light through a high-quality acrylic lens, spreading it evenly and without causing glare - Optional Louver available (added fee's may apply)
- One piece aluminum extrusion housing that incorporates a precisely cut, smooth white extruded frosted lens that securely attaches to the body and allows easy removal for accessing the driver and LED board when needed.
- Solid aluminum end caps are included, Finished with corrosion free powder coat
- Fixture is pre-wired for daisy chain, No additional wiring is required for continuous run, Connector Brackets to link fixtures in a continuous run is included, Trimless Mount (can be serviced from below ceiling)
- ETL Listed, DLC Standard Listed, Approved For CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Damp Location (IP44)
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating/Type
| -
- 120-277V
| -
-
-
| Finish | -
| White | -
-
-
| Selectable Wattages | -
| 40 Watts/30 Watts/20 Watts | -
-
-
- Dimmable
| -
| YES/0-10V/Dim-To-OFF/Flicker Free | -
-
-
- Lumens
-
| -
| 4,800LM/3,600LM/2,400LM | -
-
-
| Selectable CCT | -
| 2700K/3000K/3500K/4000K/5000K | -
-
-
- CRI
-
| -
| >90 | -
-
-
- Projected Life (L70)
| -
50,000 Hours-
| -
-
-
| Thermal | -
- -4°F to 122°F
| -
-
-
- Lens
| -
| Frosted Acrylic | -
-
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Pre-Installed Factory Add-On's (Fee's and Lead Times Vary):
90 Minute Emergency Backup
Bi-Level Motion and Daylight Sensor
SG-20KV-UNV: 20KV Surge Protector
Paint: Black, White, Gray Standard. Custom RAL Available
Call Our Customer Service Line For More Information: 1-877-235-0020
|
|
|
|
|
|
|
