Part Number: LED-ALIN2-6FT-3P75-D-5CCT-TML
ITEM NOT QUALIFIED FOR FREE SHIPPING!
0-10V/Dimmable (Dim-To-Off/Flicker Free)
Selectable Wattage - 60/45/30w
Voltage - 120-277v
Lumens - 7,200/5,400/5,040lm
Selectable CCT - 27/30/35/40/50K
Beam Angle - 110°
Projected Life (L70) - 50,000 Hours
Finish - White
Length - 6' (ft)
Width - 2"
Height - 4"

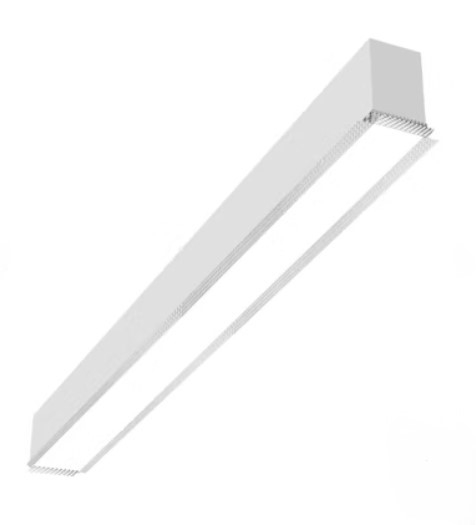

Redefining modern spaces requires the sleek, seamless integration provided by the EnVisionLED LED-ALIN2-6FT-3P75-D-5CCT-WH-TML - ARCY-LINE: 6' Architectural Linear Fixture (Trimless) from USA Light. This expansive 6-foot fixture offers a high-end, plaster-in look that surpasses the capabilities of standard low-voltage interior lighting by providing powerful, primary illumination. As a centerpiece for indoor office lighting, this trimless white fixture creates a continuous line of light that appears to be part of the ceiling itself.
The benefits for contractors are significant, primarily due to the integrated 5-CCT and 3-power selectable switches. Having the ability to adjust between 30W, 45W, or 60W and five different color temperatures on a single unit means you carry less inventory while maintaining maximum flexibility on-site. USA Light specifically designs these indoor LED lights to streamline the workflow for commercial lighting for contractors, ensuring a precise, professional installation every time. The universal 120-277V compatibility further ensures this fixture is ready for any large-scale professional environment. Order today.
- The EnVisionLED ARCY-Line Architectural Linear Fixtures (Trimless) offer a 2" sleek and modern appearance with symmetrical light distribution. They can be surface, wall, recess, trim-less, or pendant mounted.
- Lens: Acrylic Frosted Lens Standard: efficiently emits the light through a high-quality acrylic lens, spreading it evenly and without causing glare - Optional Louver available (added fee's may apply)
- One piece aluminum extrusion housing that incorporates a precisely cut, smooth white extruded frosted lens that securely attaches to the body and allows easy removal for accessing the driver and LED board when needed.
- Solid aluminum end caps are included, Finished with corrosion free powder coat
- Fixture is pre-wired for daisy chain, No additional wiring is required for continuous run, Connector Brackets to link fixtures in a continuous run is included, Trimless Mount (can be serviced from below ceiling)
- ETL Listed, DLC Standard Listed, Approved For CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Damp Location (IP44)
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating/Type
| -
- 120-277V
| -
-
-
| Finish | -
| White | -
-
-
| Selectable Wattages | -
| 60 Watts/45 Watts/30 Watts | -
-
-
- Dimmable
| -
| YES/0-10V/Dim-To-OFF/Flicker Free | -
-
-
- Lumens
-
| -
| 7,200LM/5,400LM/5,040LM | -
-
-
| Selectable CCT | -
| 2700K/3000K/3500K/4000K/5000K | -
-
-
- CRI
-
| -
| >90 | -
-
-
- Projected Life (L70)
| -
50,000 Hours-
| -
-
-
| Thermal | -
- -4°F to 122°F
| -
-
-
- Lens
| -
| Frosted Acrylic | -
-
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Pre-Installed Factory Add-On's (Fee's and Lead Times Vary):
90 Minute Emergency Backup
Bi-Level Motion and Daylight Sensor
SG-20KV-UNV: 20KV Surge Protector
Paint: Black, White, Gray Standard. Custom RAL Available
Call Our Customer Service Line For More Information: 1-877-235-0020
|
|
|
|
|
|
|
