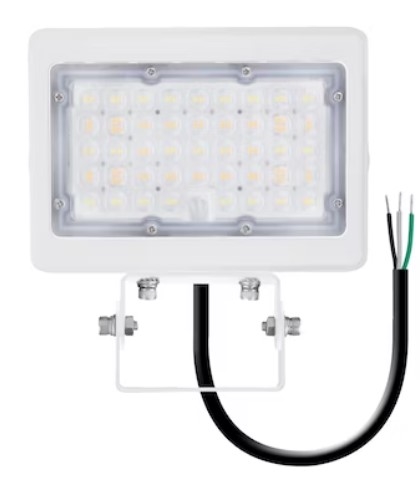

Part Number: LED-ARL-2P50-TRI-WH-TR-PC
0-10V/Dimmable
Selectable Wattage - 35/50w Voltage - 120-277v Selectable CCT - 30/40/50K Lumens - 4,900/7,000lm Beam Angle - 120° Finish - White Base - Trunnion Mount
Height (with base) - 7.8" Width - 7.2" Depth - 1.8"
- Sturdy die-cast aluminum housing finished with corrosion free powder coat
- 1.5' STJW 18.3 AWG cable whip included
- Photocell included on each fixture. Easy disconnect. Instant-On to full brightness.
- Two Standard Arms: 1/2" Knuckle Mount, Trunnion Mount, Adjustable 180° arms (please see above which mount this fixture comes with)
- Lens: PC Lens: Clear acrylic with optics, 3 Step MacAdam Ellipses, Built-In 6Kv Surge Protector
- UNV: 120-277V 0-10V Dimmable
- Optional For Purchase: Wire Guard, Shields (Bronze/White Finishes)
- UL Listed, DLC-P Listed, RoHS Compliant, Approved For CA T24, IP Rating: Wet Location, FCC CFR 47, FCC Part 15, Subpart B:2017
- 5 year limited factory warranty

-
-
| Tech Specs |
|---|
|
| | | Voltage Rating | 120-277V | | Beam Angle | 120°
| | Selectable Wattage | 35 Watts/50 Watts | | Power Factor | >0.9 | | Dimmable | YES/0-10V | | Avg. Rated Life (L70) | 70,000 | | Lumens | 4,900LM/7,000LM | | Selectable CCT | 3000K/4000K/5000K | | CRI | >80 | | Operating Temperature | -40°F To 122°F
| | Manufacturer | EnVisionLED Lighting | | Item Type | Mini Area Flood Light | | Finish | White (Custom Finishes Available, Lead Times Vary) |
-
|
|
|
 |
 |
 |
 |

|
