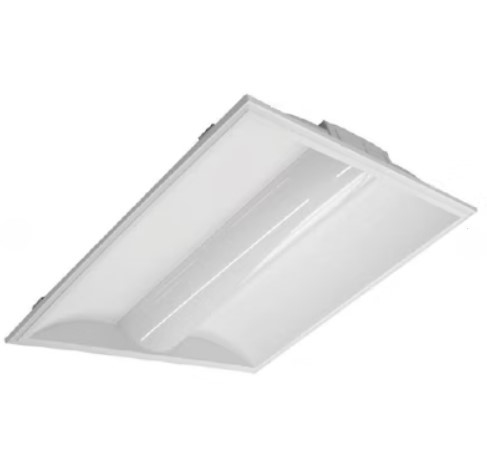

Part Number: LED-CBT-2X2-PC-CCT-HL-90CRI
0-10V/Dimmable
Selectable Wattage - 20/25/30/35w
Voltage - 120-277v
Selectable CCT - 30/35/40/50K
Lumens - 2,600/3,250/3,900/4,550lm
Beam Angle - 110°
Finish - White/Frosted
Height - 3"
Length - 23.7"
Width - 23.7"
- EnVisionLED Troffers feature a u-shaped heat sink inside in order to spread beam distribution and give the fixture backlight
- Flicker-free 0-10V dimmable internal driver
- Up to 56% higher efficiency than fluorescent
- UL Listed, DLC-P Listed, Damp Location
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating
-
| -
- 120-277
-
| -
-
-
| Beam Angle | -
110°
| -
-
-
| Selectable Wattage | -
| 20 Watts/25 Watts/30 Watts/35 Watts | -
-
-
| Dimmable | -
| YES/0-10V | -
-
-
| Lumens | -
| 2,600LM/3,250LM/3,900LM/4,550LM | -
-
-
| Selectable CCT | -
| 3000K/3500K/4000K/5000K | -
-
-
- CRI
| -
>90
| -
-
-
| Warranty | -
| 5 Year Limited Factory Warranty | -
-
-
| Listed | Damp Location | -
-
-
| Manufacturer | -
| EnVisionLED | -
-
-
| Fixture Size | -
| 2X2 | -
-
-
-
|
|
|
|
 |
|
 |
|
