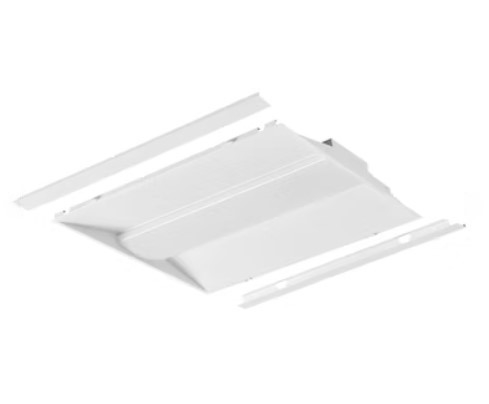

EnVisionLED LED-CBT-RK-2X4-5P50-5CCT - C-Line: 2X4 Center Basket Troffers - 50/45/40/35/30W - Selectable CCT - 120-277V - Retrofit Kit Series

EnVisionLED LED-CBT-RK-2X4-5P50-5CCT
CUSTOMER REVIEWS




Download The Installation PDF



Download The Spec Sheet
Price: $102.00


Free Shipping
Qty:

Description Technical Specs Shipping Time

Part Number: LED-CBT-RK-2X4-5P50-5CCT

0-10V/Dimmable

Selectable Wattage - 50/45/40/35/30w
Voltage - 120-277v
Selectable CCT - 27/30/35/40/50K
Lumens - 6,250/5,625/5,000/4,375/3,750lm
Beam Angle - 110°
Finish - White/Frosted

Dimensions - See Spec Sheet


  • Aluminum housing finished with corrosion free powder coat, even light distribution, lightweight for easier installation
  • Flicker-free, 120-277V 0-10V dimmable (dim-to-off), isolated driver, Lens: Frosted, Non-Yellowing
  • Retrofit existing fluorescent 2X2 fixtures, Mounting brackets included
  • Optional For Purchase: 347-480V Step Down Transformer, CRI>90 Chip Available (Sold Separately)
  • UL Listed, DLC Premium Listed, Approved For CA T24, IP Rating: Damp Location (IP44), FCC CFR 47, GCC Part 15, Subpart B:2017
  • 5 year limited factory warranty
Features
  • Pre-Installed Factory Add-On's (Fee's/Lead Times Vary):

    6' 5 Wire Flex Whip Hot, Neutral, Ground, Dim
    6' 6 Wire Flex Whip Hot, Neutral, Ground, Dim, Emergency Backup
    90 Minute Emergency Backup: 30-120F
    Bi-Level Motion and Daylight Sensor (internal sensor)
    EnVision NLS Bluetooth Control: PIR/Daylight/Zoning
    SILVAIR Enable Bluetooth Control: PIR/Daylight/Zoning/Monitoring
    SG-20KV-UNV: 20KV Surge Protector
    347-480V Step Down Transformer
    CRI90 LED Board

    Call Our Customer Service Line For More Information: 1-877-235-0020
