Part Number: LED-CYA-UD-4-3P20-TRI-BL-PC
0-10V/Dimmable
Selectable Wattage - 12/16/20w
Voltage - 120-277v
Selectable CCT - 30/40/50K
Lumens - 1,250/1,600/2,000lmlm
Avg. Rated Life (L70): 50,000 Hours
Beam Angle - 40° (Standard)
Finish - Black
Height - 11"
Diameter - 4.17"
Depth - 6.7"

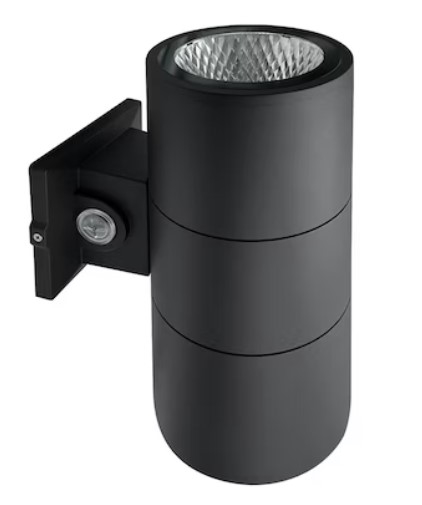

- EnVisionLED: ARCY-Line: 4" Architectural Cylinder Up and/or Down Light
- Sturdy die-cast aluminum housing finished with corrosion free powder coat
- Photocell included on each fixture. Features on/off switch.
- 1.5' STJW 18.3 AWG cable whip included
- 3-Selectable Light Options: Up Only, Down Only, Up and Down Light
- Easy Beam Angle Swap: available for field swap or at factory level, Instant-On to full brightness
- Built in 6kV surge protection, Lens: Clear glass with optics, Beam Angle: 40° standard (other optics available)
- Mounts to 3" or 4" junction box, Covers a standard 4" recessed j-box
- UL Listed, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Wet Location IP65
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating
-
| -
120-277V-
| -
-
-
| Item Type | -
| 4" Architectural Cylinder Up and/or Down Light | -
-
-
| Selectable Wattage | -
| 12 Watts/16 Watts/20 Watts | -
-
-
| Power Factor | -
- >0.9
| -
-
-
| Mounting | -
| 3" or 4" J-Box/Covers a Standard 4" Recessed J-Box | -
-
-
| Selectable CCT | -
| 3000K/4000K/5000K | -
-
-
Lumens-
| -
| 1,260LM/1,680LM/2,100LM | -
-
-
| Beam Angle | -
40° Standard (other optics available)
| -
-
-
- CRI
-
| -
| >80 | -
-
-
- Dimming
| -
| YES/UNV: 120-277V 0-10V | -
-
-
- Rated Life (L70)
| -
- 50,000 Hours
-
| -
-
-
- Ambient Operating Temp Range
-
| -
- -40° F to 122° F
| -
-
-
| Finish | -
| Black | -
-
-
-
|
|
|
|
