Part Number: LED-DLJBX-ADJ-4-12W-5CCT-BLK-R
Triac/Dimmable
Wattage - 12w Voltage 120v Lumens - 750lm
Selectable CCT - 27/30/35/40/50K
Beam Angle - 38° Flood
Adjustable - 35° Tilt/360° Rotation
Avg. Rated Life (L70) - 50,000 Hours
Finish - Black
Height - 2.3"
Inner Diameter - 3.4"
Outer Diameter - 5"

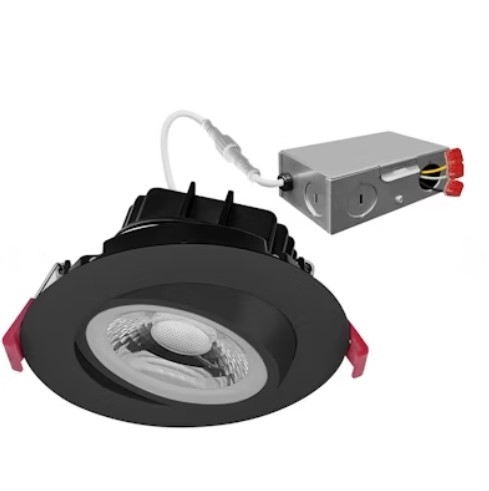

- EnVisionLED 4" Gimbal Adjustable Downlight Can-less has a metal housing and trim for better heat dissipation.
- SnapTrim Can-less: Springs clips with remote j-box eliminates can, Built-In 2.5Kv Surge Protector, Flicker Free
- No housing needed in remodel applications, tension clips mount into 1/2" and 1.5" thick ceiling, Cut Out Dimension: 4 1/4"
- This fixture does not fit into a recessed can
- Can be removed from below the ceiling for service and replacement
- Pre-wired junction box with circuit wiring built in (3 in/3 out), 3 Step MacAdam Ellipses, Lens: Clear, Non-yellowing
- Optional For Purchase: Emergency Backup available delivers full lumens in EM mode up to 25W, New Construction Plate (sold separately)
- ETL Listed, Energy Star Certified, CA Title 24 JA8-2022 CEC Listed, IP54 Wet Location Rated, FCC CFR 47, GCC Part 15, Subpart B:2017, IC Rated and ASTM-E283 Air-Tight, Complies with UL 263, ASTM E119, CAN ULC S101
- 5 Year Limited Factory Warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Dimmable
-
| -
- Yes/Triac
| -
-
-
- Item Type
-
| -
- Recessed Lighting LED Retrofit Trim
-
| -
-
-
- Item Style
-
| -
| 4" LED Gimbal Adjustable Downlight Can-Less | -
-
-
| Beam Angle/Adjustable | 38°/YES
| -
-
-
| Manufacturer | EnVisionLED | -
-
-
| Finish | -
| Black | -
-
-
| Lumens | -
| 750LM | -
-
-
| Wattage | -
| 12 Watts | -
-
-
| Warranty | -
| 5 Year Limited Factory | -
-
-
| CRI | -
| >90 | -
-
-
| Selectable CCT | -
| 2700K/3000K/3500K/4000K/5000K | -
-
-
| Voltage | -
| 120V | -
-
-
-
|
|
|
|
 |
|
 |
