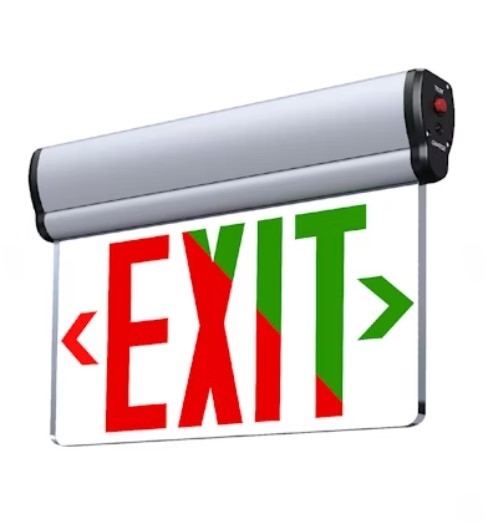

Part Number: LED-EM-EXT-EL-RG
NON-Dimmable
Dual Voltage - 120-277V
Wattage - 3W
Charging Time - 24 Hours
Discharge Time - 90 Minutes
Operating Temperature - 40° F ~ 104° F
Dimensions - 12.1 W" x 9.7 H" x 1.8 D"
CCT - Green/Red Selectable
Avg. Rated Life (L70) - 50,000 hours
- Built-in test Switch and charge indicator
- 6" height letters with 3/4" stroke, viewable from 100ft away
- Injection-molded thermoplastic housing, PC cover, Can be used as Single or Double Face
- Wall and ceiling mounted, Universal J-box mounting pattern
- Non-dimmable
- UL Listed (UL94V-0 Flame Rating), IP Rating: IP20, Meets UL924, NDPA 101, Approved for CA T 24, FCC CFR 47, GCC Part 15, Subpart B:2017
- 3 year limited factory warranty
| Tech Specs |
|---|
|
| | | Dual Voltage Rating | 120V-277V | | Mounting | Wall/Ceiling/Universal J-Box Mounting Pattern | | Single/Double | Single or Double Faced | | Finish | Green or Red Lettering | | Emergency Operating Power | Battery Backup | | Housing | Black Housing/Injection-Molded Thermoplastic | | Dimming | NON-Dimmable | | Selectable CCT | Green/Red Lettering | | Wattage | 3 Watts | | Power Factor | >0.9, 50/60Hz | | Discharge Time | 90 Minutes | | Item Style | LED Exit Sign | | Certifications | UL Listed (UL94V-0 Flame Rating), Meets UL924, NDPA 101, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017 |
|
|
|
 |
|
 |
|
