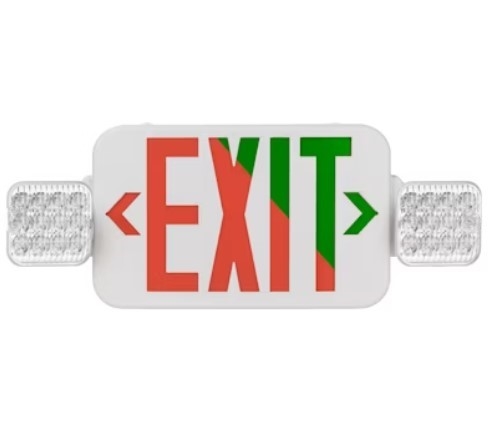

Part Number: LED-EM-EXT-RG-WH-CMB-RC
NON-Dimmable
Dual Voltage - 120V/277V
Wattage - 3.5W Max
Lumens - 140lm
Backup Time - >90 Minutes
Recharge Time - 24hrs
Operating Temperature - 40° F ~ 104° F
Dimensions - 19 W" x 7.25 H" x 3.7 D"
Avg. Rated Life (L70) - 50,000hrs
Finish - Red or Green Lettering/White Housing
- 6" height letters with 3/4" stroke, viewable from 100ft away
- Built-in test switch and charge indicator
- Compatible with LED-EM-RC-1, LED-EM-RC-2
- Injection-molded thermoplastic housing, PC cover
- Wall and ceiling mounted, Universal J-Box mounting pattern, Remote capable
- Non-dimmable, Single Face
- UL Listed (UL94V-0 Flame Rating), Meets UL924, NDPA 101, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017
- 3 year limited factory warranty
| Tech Specs |
|---|
|
| | | Dual Voltage | 120V/277VAC 60Hz | | Mounting | Wall/Ceiling/End | | Single/Double | Single Faced | | Finish | Red or Green Lettering | | Emergency Operating Power | Battery Backup | | Housing | White Housing/Injection-Molded Thermoplastic, PC Cover | | Dimming | NON-Dimmable | | Lens | Red or Green Lettering | | Output | 3.5 Watts | | Lumens | 140LM | | Discharge Time | 90 Minutes | | Item Style | LED Exit Sign With Bug Eyes and Remote Capability | | Certifications | UL Listed (UL94V-0 Flame Rating), Meets UL924, NDPA 101, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017 |
|
|
|
