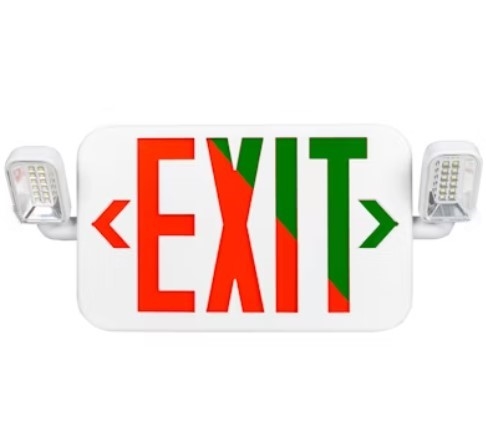

Part Number: LED-EM-EXT-RG-WH-CMB
NON-Dimmable
Dual Voltage - 120/277V
Wattage - 3.5W
Lumens - 140lm
Charging Time - 24 Hours
Discharge Time - 90 Minutes
Operating Temperature - 40° F ~ 104° F
Dimensions - 11.5 W" x 7 H" x 1.75 D"
Finish - Red or Green Lettering/White Housing
Avg. Rated Life (L70) - 70,000 hours
- Built-in test Switch and charge indicator
- 6" height letters with 3/4" stroke, viewable from 100ft away
- Injection-molded thermoplastic housing, PC cover, Single or Double Faced (both plated included)
- Wall and ceiling mounted, Universal J-box mounting pattern
- Non-dimmable
- UL Listed (UL94V-0 Flame Rating),Meets UL924, NDPA 101, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017
- 3 year limited factory warranty
| Tech Specs |
|---|
|
| | | Dual Voltage Rating | 120V/277V | | Mounting | Wall/Ceiling/Universal J-Box Mounting Pattern | | Single/Double | Single or Double Sided (both plates included) | | Finish | Red or Green Lettering | | Emergency Operating Power | Battery Backup | | Housing | White Housing/Injection-Molded Thermoplastic | | Dimming | NON-Dimmable | | Lens | Red or Green Lettering | | Wattage | 3.5 Watts | | Power Factor | >0.9, 50/60Hz | | Discharge Time | 90 Minutes | | Item Style | LED Exit Sign With Bug Eyes | | Certifications | UL Listed (UL94V-0 Flame Rating), Meets UL924, NDPA 101, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017 |
|
|
|
 |
|
 |
|
