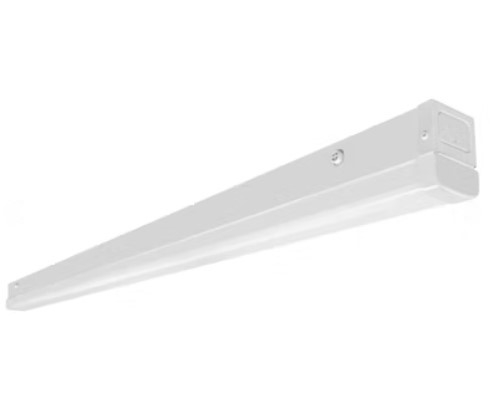

Part Number: LED-MSTL-4FT-3P40-5CCT-HL
0-10V/Dimmable
Selectable Wattage - 40/30/20w
Voltage - 120-277v
Selectable CCT - 30/35/40/50/65K
Lumens - 6,000/4,500/3,000lm
Projected Life (L70) - 50,000 Hours
Beam Angle - 130°
Finish - White
Length - 48.03"
Width - 1.97"
Height - 2.59"
- Seamless linkable connectors allows for multiple fixtures on one power source (see spec sheet for maximum runs)
- Link several fixtures together (see spec sheet for quantities) with optional seamless connector or 6" or 24" jumper cables
- Sensors: Only one fixture with a motion sensor is required when linking fixtures together. The sensor will activate all the fixtures. Place the fixture with the sensor in desired order.
- Emergency: No additional wiring needed in EMB scenarios. EnVisionLED's patent pending connector allows for universal plug and play.
- Aluminum housing finished with corrosion free powder coat, 18AWG 6-wire linkable, White (custom finishes available)
- Optional For Purchase: Power Feed Cords: Live, Hardwire, or Plug in 3-Prong, Continuous Run 6-Pin and Bracket, Suspension Kits (sold separately)
- Surface mount into 3O or 4O j-box, 4O j-box cover included with every fixture, Easy j-box access: snap on and off tool-less design
- Lens: Square Acrylic Frosted, Flicker Free,
- UL Listed, DLC Premium Listed, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Dating: Damp Location (IP44)
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating
| -
- 120-277V
| -
-
-
| Finish | -
| White (Custom Finishes Available) | -
-
-
| Selectable Wattage | -
| 40 Watts/30 Watts/20 Watts | -
-
-
| Beam Angle | -
- 130°
| -
-
-
- Lumens
-
| -
| 6,000LM/4,500LM/3,000LM | -
-
-
| Selectable CCT | -
| 3000K/3500K/4000K/5000K/6500K | -
-
-
- CRI
-
| -
| >80 | -
-
-
- Projected Life (L70)
| -
50,000 Hours-
| -
-
-
| Thermal | -
- -40°F to 122°F
| -
-
-
- Lens
| -
| Frosted | -
-
-
-
|
|
|
|
