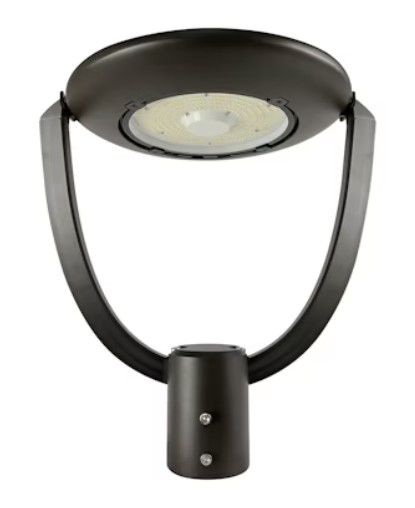

Part Number: LED-PST-3P75-TRI-BZ-UNV
0-10V/Dimmable
Selectable Wattage - 35/50/75w
Voltage - 120-277v
Selectable CCT - 30/40/50K
Lumens - 4,550/7,150/9,750lm
Beam Angle - Type V Standard (Type IV Optional)
Avg. Rated Life (L70) - 70,000 Hours
Finish - Bronze
Height - 20.7"
Diameter - 15"
- Sturdy die-cast aluminum housing finished with corrosion free powder coat
- Mounts onto 2 3/8" tenons (Not Included)
- Full Cut-Off Dark Sky Compliant, Instant-On to full brightness, Lens: Clear Ribbed
- Compact design for easier installation and shipping
- Select-n-Switch Technology, 3-CCT + 3-Power Selectable
- UL Listed, DLC-Premium Listed, RoHS Compliant, Approved for CA T24, IP65 Wet Location, FCC CFR 47, GCC Part 15, Subpart B:2017
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
| Voltage Rating | -
| 120-277V | -
-
-
| Beam Angle | -
| Type 5 Standard (Type IV Optional For Purchase) | -
-
-
| Selectable Wattage | -
| 35 Watts/50 Watts/75 Watts | -
-
-
| Manufacturer | -
- EnVisionLED
| -
-
-
| Mounting | -
| Fits 2 3/8-3" Tenon (Not Included) | -
-
-
| Rated Life/Warranty | -
| 70,000 Hours/5 Year Limited Factory Warranty | -
-
-
Lumens-
| -
| 4,550LM/7,150LM/9,750LM | -
-
-
| Selectable CCT | -
| 3000K/4000K/5000K | -
-
-
- CRI
-
| -
| >80 | -
-
-
- Dimmable
| -
| YES/0-10V | -
-
-
| Power Factor | -
| >0.9 | -
-
-
| Operating Temperature | -
| -4° F to 140° F | -
-
-
| Item Style | Post-Top Flood: Bolt-Line | -
-
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Pre-Installed Factory Add-On's (Fee's and Lead Times Vary):
90 Minute Emergency Backup
On/Off Photocell
HD407VC-R: Bi-Level Motion and Daylight Sensor
SG-20KV-UNV: 20KV Surge Protector
347-480V Step Down Transformer
Paint: Black, White, Gray Standard. Custom RAL Available (Fee's and Lead Times Vary)
Call Our Customer Service Line For More Information: 1-877-235-0020
|
|
|
|
|
|
|
