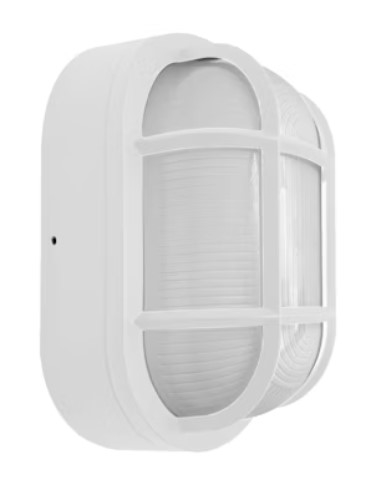

Part Number: LED-WPBH-3P20-TRI-WH-PC
0-10V/Dimmable
Selectable Wattage - 20/16/12w
Voltage - 120-277v
Selectable Color Temp - 30/40/50K
Lumens - 1,700/1,360/1,020lm
Beam Angle - 100°
Photocell - Selectable (On/PS/Off Switch)
BUG - B1-U3-G2
Average Rated Life (L70) - 70,000 Hours
Finish - White
Height - 9.64"
Width - 5.83"
Depth - 5.1"
- EnVisionLED Bulk-Line: LED Wall Pack; Sturdy die-cast aluminum housing finished with corrosion free powder coat
- Lens: Ribbed acrylic, Instant-On to full brightness, Select-N-Switch Technology (3-CCT), 0-10V Dimmable
- Photocell is included, Backplate mounts to j-box, Built-in 6Kv surge protector
- ETL Listed, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017,Wet Location Rated, Impact Rating: IK08
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
| Voltage Rating | -
| 120-277V | -
-
-
| Beam Angle | -
100°
| -
-
-
| Selectable Wattage | -
| 20 Watts/16 Watts/12 Watts | -
-
-
| Photocell | -
- Selectable (On/PS/Off)
| -
-
-
| Manufacturer | -
| EnVisionLED | -
-
-
| BUG Rating | -
| B1-U3-G2 | -
-
-
Lumens-
| -
| 1,700LM/1,360LM/1,020LM | -
-
-
| Selectable 3-CCT | -
| 3000K/4000K/5000K | -
-
-
- CRI
-
| -
| >80 | -
-
-
- Dimmable
| -
| 0-10V | -
-
-
| Lens | -
| Ribbed Acrylic | -
-
-
| Operating Temperature | -
| -40° F to 113° F | -
-
-
| Material/Finish | Die Cast Aluminum/White | -
-
-
-
|
|
|
|
 |
|
 |
|
