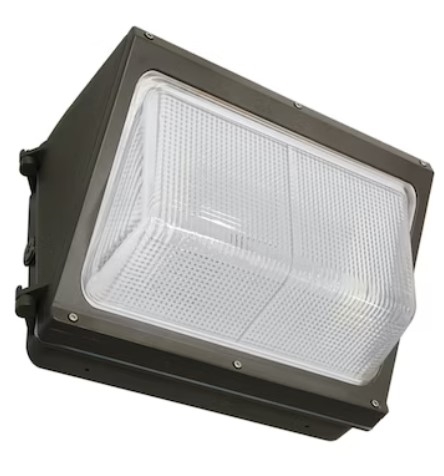

EnVisionLED LED-WPF-5P120-TRI-BZ-PC - Full-Line: Traditional Wall Pack - 5-Power Selectable 40/60/80/100/120W - 3-CCT 30/40/50K - 120-277V - Bronze


EnVisionLED LED-WPF-5P120-TRI-BZ-PC
CUSTOMER REVIEWS




Download The Installation PDF



Download The Spec Sheet

Price: $157.99

Stock Status: In Stock

Qty:

Description Technical Specs Shipping Time

Part Number: LED-WPF-5P120-TRI-BZ-PC

0-10V/Dimmable


5-Power Selectable/Wattage - 40W/60W/80W/100W/120W
Voltage - 120-277v
Selectable CCT - 30/40/50K
Lumens - 5,600/8,400/11,200/14,000/16,800lm
Beam Angle - Type IV
BUG - B3-U5-G5
Average Rated Life (L70) - 70,000 Hours
Finish - Bronze (Custom finishes available, lead times vary)

Height - 7.46"
Width - 14.27"
Depth - 9.25"

  • EnVisionLED Full-Line: Traditional Wall Pack; Sturdy die-cast aluminum housing finished with corrosion free powder coat
  • Traditional metal-halide wall pack size
  • Lens: Glass Lens, Instant-On to full brightness, 0-10V Dimmable
  • Photocell is included with an easy quick disconnect
  • Surge Protection: 6KV, Photocell Included, Five 1/2" Knockouts: (1) One on each side for convenient installation
  • UL Listed, DLC Listed, ROHS Compliant, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017,Wet Location Rated, Impact Rating: IK08
  • 5 year limited factory warranty


Features
  • Pre-Installed Factory Add-On's (Added Fee's/Lead Times Vary):

    90 Minute Emergency Backup 30 to 120 DEG F
    90 Minute Emergency Backup (Cold Weather) -4 to 120 DEG F
    Bi Level Motion and Daylight Sensor
    Bi Level Motion and Daylight Sensor W/ Bluetooth
    20KV Surge Protector
    347-480 Step Down Transformer

    Call Our Customer Service Line For More Information: 1-877-235-0020
