Part Number: LED-WPF-SL-3P60-TRI-BZ-HV-PC
0-10V/Dimmable
3-Power Selectable/Wattage - 30/40/60w
Voltage - 277-480v
Selectable CCT - 30/40/50K
Lumens - 3,900/5,200/7,800lm
Beam Angle - Type IV
BUG - B3-U3-G5
Average Rated Life (L70) - 70,000 Hours
Finish - Bronze (Custom finishes available, lead times vary)
Height - 9.25"
Width - 13.74"
Depth - 4.29"

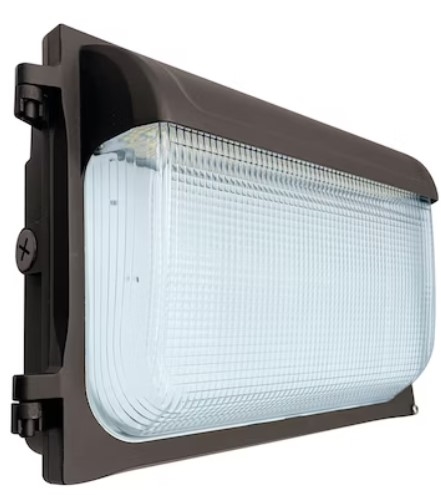

- EnVisionLED Slim-Line: Wall Pack; Sturdy die-cast aluminum housing finished with corrosion free powder coat
- Slim in size and easy to install
- Lens: Glass Lens, Instant-On to full brightness, 0-10V Dimmable
- Photocell is included with an easy quick disconnect
- Surge Protection: 6KV, Photocell Included, Five 1/2" Knockouts: (1) One on each side for convenient installation
- UL Listed, DLC Listed, ROHS Compliant, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017,Wet Location Rated, Impact Rating: IK08
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
| Voltage Rating | -
| 277-480V | -
-
-
| Beam Angle/BUG | -
Type IV/B3-U3-G5
| -
-
-
| Wattage/3-Power Selectable | -
| 30 Watts/40 Watts/60 Watts | -
-
-
| Power Factor | -
- >0.9
| -
-
-
| Knockouts | -
| Five (5) 1/2" Knockouts | -
-
-
| Photocell | -
| Included | -
-
-
Lumens-
| -
| 3,900LM/5,200LM/7,800LM | -
-
-
| Selectable 3-CCT | -
| 3000K/4000K/5000K | -
-
-
- CRI
-
| -
| >80 | -
-
-
- Dimmable
| -
| 0-10V | -
-
-
| Lens | -
| Glass | -
-
-
| Operating Temperature | -
| -40° F to 122° F | -
-
-
| Finish | Bronze (Custom Finishes Available/Lead Times Vary) | -
-
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Optional For Purchase Pre-Installed Factory Add-On's:
90 Minute Emergency Battery Backup
HB01-DMS-C: Bi-Level Motion + Daylight Sensor
S-BMS-EXT-1: Bi-Level Motion + Daylight Sensor
S-BMS-EXT-1-BT: Bi Level Motion + Daylight Sensor W/Bluetooth Control (ENVISION SMART APP)
SG-20KV-UNV: 20KV Surge Protector
347-480V Step Down Transformer
Custom Finishes: Black, White, Gray Standard, Custom RAL Available: Prices/Lead Times Vary
Call our Customer Service Line For Pricing/More Information: 877-235-0020. Prices are in addition to original product purchase price. Ask about additional lead times.
|
|
|
|
|
|
|
