Part Number: LED-WPFC-5P150-TRI-BZ-PC
0-10V/Dimmable
Selectable Wattage - 30/60/90/120/150w Voltage - 120-277v Selectable CCT - 30/40/50K Lumens - Depends on Wattage Selection Beam Angle - Type III (Standard) BUG - B3-U2-G2 Average Rated Life (L70) - 70,000 Hours Finish - Bronze
Height - 6.5" Width - 14.1" Depth - 9.25"

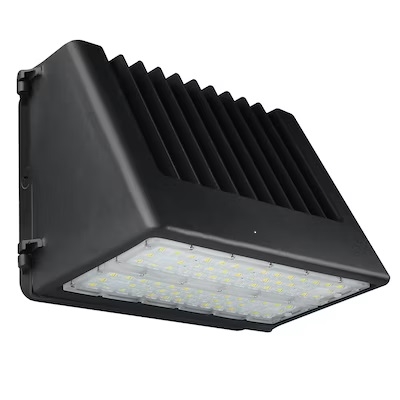

- EnVisionLED FC-Line: Full Cut Off Wall Packs: Sturdy die-cast aluminum housing finished with corrosion free powder coat.
- Full Cut-Off Dark Sky Compliant, Instant-On to full brightness
- Photocell is included with an easy quick disconnect, Beam Angle: Type II (Standard), Type II and Type IV available
- Lens: Clear acrylic with optics, Five (5) 1/2" knockouts: One (1) on each side for convenient installation
- Built-in 6Kv Surge protection, Bronze Finish (Black, White, and Custom Finishes available)
- UL Listed, DLC Listed, RoHS Compliant, Approved for CA T24, IESNA LM-79 and LM-80 tests available, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Wet Location, Impact Rating: IK08
- 5 year limited factory warranty
-
-
-
-
-
Tech Specs |
---|
|
| | Voltage Rating | 120-277V | Beam Angle | Type III | Selectable Wattage | 30 Watts/60 Watts/90 Watts/120 Watts/150 Watts | Power Factor | >0.9 | Dimmable | YES/0-10V | Avg. Rated Life (L70) | 70,000 | Lumens | Depends on Wattage Selection | Selectable CCT | 3000K/4000K/5000K | CRI | >80 | Operating Temperature | -40°F To 122°F
| Manufacturer | EnVisionLED Lighting | Item Type | FC-Line: Full Cut Off Wall Pack with Photocell | Finish | Bronze (Custom Finishes Available, Lead Times Vary) |
| -
-
-
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Features
- 30 Watts - 4,350LM
60 Watts - 8,700LM 90 Watts - 13,050LM 120 Watts - 17,400LM 150 Watts - 21,750LM
|
|
|
|
|
|
|
