EnVisionLED LED-WPFC-5P80-TRI-BZ-PC - FC-Line: Full Cut Off Wall Pack - 16/32/48/64/80W - 3-CCT 30/40/50K - 120-277V - Photocell Included - Bronze


EnVisionLED LED-WPFC-5P80-TRI-BZ-PC
CUSTOMER REVIEWS




Download The Installation PDF



Download The Spec Sheet

Price: $129.99

Stock Status: In Stock

Qty:

Description Technical Specs Shipping Time

Part Number: LED-WPFC-5P80-TRI-BZ-PC

0-10V/Dimmable


Selectable Wattage - 16/32/48/64/80w
Voltage - 120-277v
Selectable CCT - 30/40/50K
Lumens - Depends on Wattage Selection
Beam Angle - Type III (Standard)
BUG - B3-U2-G2
Average Rated Life (L70) - 70,000 Hours
Finish - Bronze

Height - 6.5"
Width - 14.1"
Depth - 9.25"

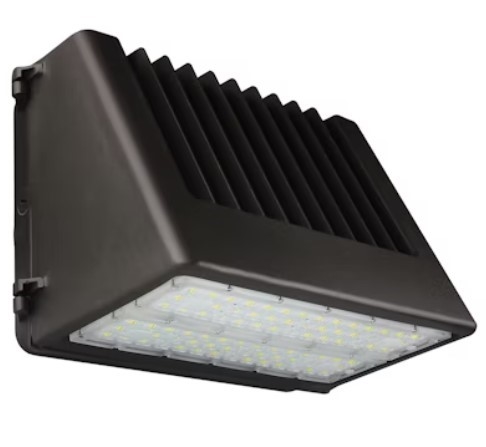

  • EnVisionLED FC-Line: Full Cut Off Wall Packs: Sturdy die-cast aluminum housing finished with corrosion free powder coat.
  • Full Cut-Off Dark Sky Compliant, Instant-On to full brightness
  • Photocell is included with an easy quick disconnect, Beam Angle: Type II (Standard), Type II and Type IV available
  • Lens: Clear acrylic with optics, Five (5) 1/2" knockouts: One (1) on each side for convenient installation
  • Built-in 6Kv Surge protection, Bronze Finish (Black, White, and Custom Finishes available)
  • UL Listed, DLC Listed, RoHS Compliant, Approved for CA T24, IESNA LM-79 and LM-80 tests available, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Wet Location, Impact Rating: IK08
  • 5 year limited factory warranty


Features
  • 16 Watts - 2,320LM
    32 Watts - 4,640LM
    48 Watts - 6,960LM
    64 Watts - 9,280LM
    80 Watts - 11,600LM
