Part Number: LED-WPFC-5P80-TRI-WH-PC
0-10V/Dimmable
Selectable Wattage - 16/32/48/64/80w
Voltage - 120-277v
Selectable CCT - 30/40/50K
Lumens - Depends on Wattage Selection
Beam Angle - Type III (Standard)
BUG - B3-U2-G2
Average Rated Life (L70) - 70,000 Hours
Finish - White (Lead Times Vary)
Height - 6.5"
Width - 14.1"
Depth - 9.25"

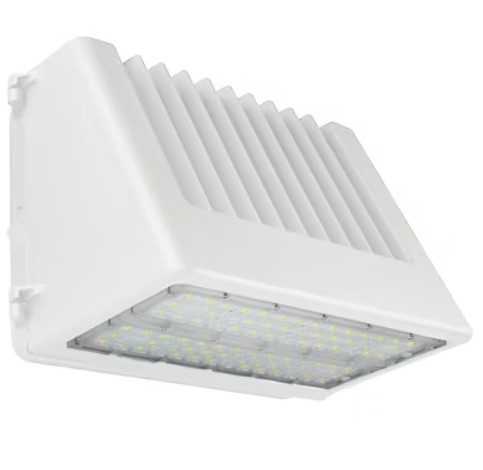

- EnVisionLED FC-Line: Full Cut Off Wall Packs: Sturdy die-cast aluminum housing finished with corrosion free powder coat.
- Full Cut-Off Dark Sky Compliant, Instant-On to full brightness
- Photocell is included with an easy quick disconnect, Beam Angle: Type II (Standard), Type II and Type IV available
- Lens: Clear acrylic with optics, Five (5) 1/2" knockouts: One (1) on each side for convenient installation
- Built-in 6Kv Surge protection, White Finish (Black, Bronze, and Custom Finishes available)
- UL Listed, DLC Listed, RoHS Compliant, Approved for CA T24, IESNA LM-79 and LM-80 tests available, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Wet Location, Impact Rating: IK08
- 5 year limited factory warranty
-
-
-
-
-
| Tech Specs |
|---|
|
| | | Voltage Rating | 120-277V | | Beam Angle | Type III | | Selectable Wattage | 16 Watts/32 Watts/48 Watts/64 Watts/80 Watts | | Power Factor | >0.9 | | Dimmable | YES/0-10V | | Avg. Rated Life (L70) | 70,000 | | Lumens | Depends on Wattage Selection | | Selectable CCT | 3000K/4000K/5000K | | CRI | >80 | | Operating Temperature | -40°F To 122°F
| | Manufacturer | EnVisionLED Lighting | | Item Type | FC-Line: Full Cut Off Wall Pack with Photocell | | Finish | White (Lead Times Vary) |
| -
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- 16 Watts - 2,320LM
32 Watts - 4,640LM
48 Watts - 6,960LM
64 Watts - 9,280LM
80 Watts - 11,600LM
|
|
|
|
|
|
|
