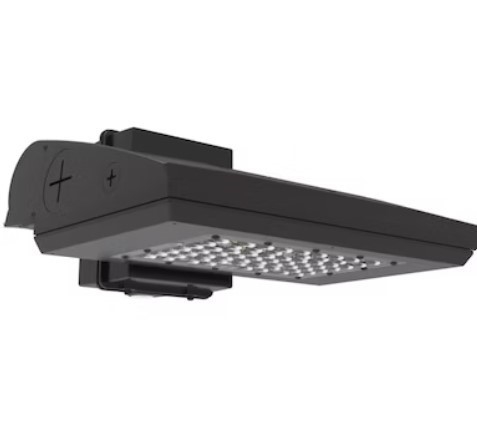

EnVisionLED LED-WPFC-ARC-3P65-TRI-BZ-PC - ARCY-Line: Full Cut Off Wall Packs - 30/50/65W - 3-CCT 30/40/50K - 120-347V - Bronze


Alternative Views:

Download The Installation PDF

Download The Spec Sheet

Price: $142.99

Stock Status: In Stock


Description Technical Specs Shipping Time
Part Number: LED-WPFC-ARC-3P65-TRI-BZ-PC

120-347V 0-10V Dimmable (Dim-To-Off)

Selectable Wattage - 30/50/65w
Voltage - 120-347v
Selectable CCT - 30/40/50K
Lumens - 3,900/6,500/8,450lm
Beam Angle - Type III (Standard)
Average Rated Life (L70) - 70,000 Hours
Finish - Bronze

Height - 5.92"
Width - 9.71"
Depth - 8.74"

  • EnVisionLED ARCY-Line: Full Cut Off Wall Packs: Sturdy die-cast aluminum housing finished with corrosion free powder coat.
  • Full Cut-Off Dark Sky Compliant when faced down, -10° down to 20° up tilt adjustable design, Instant-On to full brightness
  • Photocell is included with an easy quick disconnect, Beam Angle: Type III Standard IV or V available
  • Fixture can be mounted face up or face down, mounts to junction box
  • Lens: Clear acrylic with optics
  • Built-in 6Kv Surge protection, Bronze Finish (Black, White, and Custom Finishes available)
  • ETL Listed, DLC Premium Listed, RoHS Compliant, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Wet Location IP66, Impact Rating: IK08
  • 5 year limited factory warranty

  • Optional For Purchase Pre-Installed Factory Add-On's:

    90 Minute Emergency Battery Backup
    HB01-DMS-C: Bi-Level Motion + Daylight Sensor
    S-BMS-EXT-1: Bi-Level Motion + Daylight Sensor
    S-BMS-EXT-1-BT: Bi Level Motion + Daylight Sensor W/Bluetooth Control (ENVISION SMART APP)
    SG-20KV-UNV: 20KV Surge Protector
    Custom Finishes: Black, White, Gray Standard, Custom RAL Available: Prices/Lead Times Vary

    Call our Customer Service Line For Pricing/More Information: 877-235-0020. Prices are in addition to original product purchase price. Ask about additional lead times.
