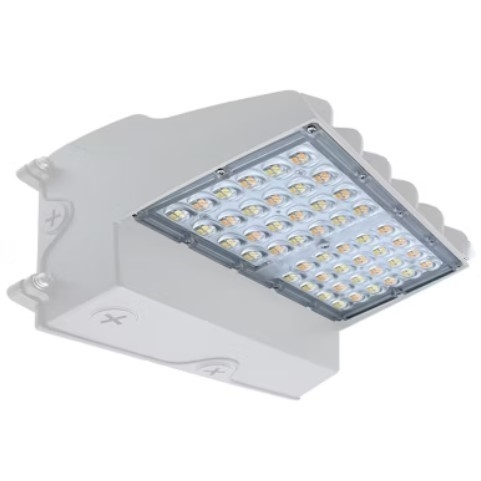

Part Number: LED-WPFC-FL-5P60W-TRI-WH-PC
0-10V/Dimmable
Selectable Wattage - 20/30/40/50/60w
Voltage - 120-277v
Selectable CCT - 30/40/50K
Lumens - 2,900/4,350/5,800/7,250/8,700lm
Beam Angle - Type IV S
BUG - B3-U3-G2
Average Rated Life (L70) - 70,000 Hours
Finish - White
Height - 5.75"
Width - 9.75"
Depth - 8"
- EnVisionLED Flat-FC-Line: Full Cut Off Wall Packs: Sturdy die-cast aluminum housing finished with corrosion free powder coat.
- Full Cut-Off Dark Sky Compliant, Instant-On to full brightness
- Photocell is included with an easy quick disconnect, Beam Angle: Type IV S, 3 Step MacAdam Ellipses
- Lens: Clear acrylic with optics, Five (5) 1/2" knockouts: One (1) on each side for convenient installation
- Built-in 6Kv Surge protection, Bronze Finish (Black, White, and Custom Finishes available)
- UL Listed, DLC Listed, RoHS Compliant, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Wet Location, Impact Rating: IK08
- 5 year limited factory warranty
-
-
-
-
-
| Tech Specs |
|---|
|
| | | Voltage Rating | 120-277V | | Beam Angle | Type IV S | | Selectable Wattage | 20 Watts/30 Watts/40 Watts/50 Watts/60 Watts | | Power Factor | >0.9 | | Dimmable | YES/0-10V | | Avg. Rated Life (L70) | 70,000 | | Lumens | 2,900LM/4,350LM/5,800LM/7,250LM/8,700LM | | Selectable CCT | 3000K/4000K/5000K | | CRI | >80 | | Operating Temperature | -40°F To 122°F
| | Manufacturer | EnVisionLED Lighting | | Item Type | Flat FC-Line: Flat Full Cut Off Wall Pack with Photocell | | Finish | White (Custom Finishes Available, Lead Times Vary) |
| -
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Pre-Installed Factory Add-On's (Added Fee's/Lead Times Vary):
90 Minute Emergency Backup 30 to 120 DEG F
90 Minute Emergency Backup (Cold Weather) -4 to 120 DEG F
Bi Level Motion and Daylight Sensor
Bi Level Motion and Daylight Sensor W/ Bluetooth
Call Our Customer Service Line For More Information: 1-877-235-0020
|
|
|
|
|
|
|
