Part Number: LED-WPFC-SC-3P80-TRI-BZ-PC
0-10V/Dimmable
Selectable Wattage - 80/64/48w
Voltage - 120-347v
Selectable CCT - 30/40/50K
Lumens - 10,800/8,640/6,480lm
Beam Angle - Type III (Standard)
BUG - B3-U2-G2
Average Rated Life (L70) - 70,000 Hours
Finish - Bronze
Height - 6.5"
Width - 13"
Depth - 6.9"

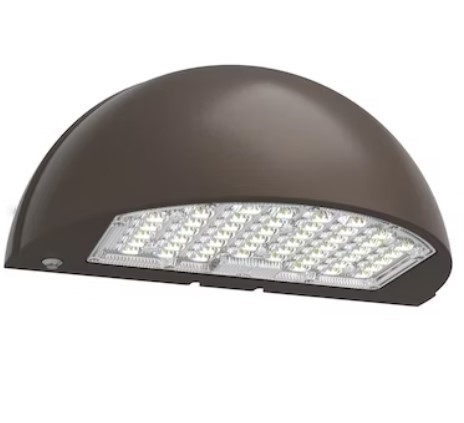

- EnVisionLED CIRCLE-Line: Semi-Circle Wall Packs: Sturdy die-cast aluminum housing finished with corrosion free powder coat.
- Full Cut-Off Dark Sky Compliant, Instant-On to full brightness
- Photocell is included with an on/off switch
- Lens: Clear acrylic with optics, Five (5) 1/2" knockouts: One (1) on each side for convenient installation
- Built-in 6Kv Surge protection, Bronze Finish (Custom Finishes available)
- UL Listed, DLC Listed, RoHS Compliant, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Wet Location, Impact Rating: IK08
- 5 year limited factory warranty
-
-
-
-
-
| Tech Specs |
|---|
|
| | | Voltage Rating | 120-347V | | Beam Angle | Type III (Standard)
| | Selectable Wattage | 80 Watts/64 Watts/48 Watts | | Power Factor | >0.9 | | Dimmable | YES/0-10V | | Avg. Rated Life (L70) | 70,000 | | Lumens | 10,800LM/8,640LM/6,480LM | | Selectable CCT | 3000K/4000K/5000K | | CRI | >80 | | Operating Temperature | -40°F To 122°F
| | Manufacturer | EnVisionLED Lighting | | Item Type | CIRCLE-Line: Semi-Circle Wall Pack | | Finish | Bronze (Custom Finishes Available, Lead Times Vary) |
| -
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Optional For Purchase Pre-Installed Factory Add-On's:
90 Minute Emergency Battery Backup
S-BMS-EXT-1: Bi-Level Motion + Daylight Sensor
S-BMS-EXT-1-BT: Bi Level Motion + Daylight Sensor W/Bluetooth Control (ENVISION SMART APP)
SG-20KV-UNV: 20KV Surge Protector
Factory Installed Type IV: T4
Factory Installed Type V: T5
Call our Customer Service Line For Pricing/More Information: 877-235-0020. Prices are in addition to original product purchase price. Ask about additional lead times.
|
|
|
|
|
|
|
