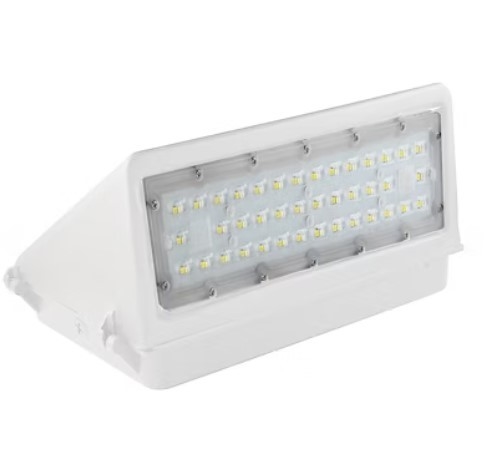

Part Number: LED-WPFC-TRZ-5P60-TRI-WH-PC
0-10V/Dimmable
Selectable Wattage - 60/50/40/30/20w
Voltage - 120-277v
Selectable CCT - 30/40/50K
Lumens - 8,700/7,250/5,800/4,350/2,900lm
Beam Angle - Type III
Finish - White
- EnVisionLED FC-Trap-Line: Regular Full Cut Off Wall Packs: Sturdy die-cast aluminum housing finished with corrosion free powder coat.
- Sensor Ready, Instant-On to full brightness
- Photocell is included, Beam Angle: Type III
- Lens: Clear, Bronze Finish (Black, White, and Custom Finishes available)
- UL Listed, DLC-Premium Listed, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Wet Location (IP65)
- 5 year limited factory warranty

-
-
-
-
-
| Tech Specs |
|---|
|
| | | Voltage Rating | 120-277V | | Beam Angle | Type III | | Selectable Wattage | 60 Watts/50 Watts/40 Watts/30 Watts/20 Watts | | Power Factor | >0.9 | | Dimmable | YES/0-10V | | Avg. Rated Life (L70) | 70,000 | | Lumens | 8,700LM/7,250LM/5,800LM/4,350LM/2,900LM | | Selectable CCT | 3000K/4000K/5000K | | CRI | >80 | | Operating Temperature | -40°F To 122°F
| | Manufacturer | EnVisionLED Lighting | | Item Type | FC-Trap-Line: Regular Full Cut Off Wall Pack | | Finish | White (Custom Finishes Available, Lead Times Vary) |
| -
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Pre-Installed Factory Add-On's (Added Fee's/Lead Times Vary):
Factory Installed Type II Optic (80W: 1PC) (150W: 2 PCs)
Factory Installed Type IV Optic (80W: 1 PC) (150W: 2 PCs)
90 Minute Emergency Backup: 30 to 120 DEG F
90 Minute Emergency Backup (Cold Weather): -4 to 120 DEG F
Bi Level Motion and Daylight Sensor
ENVISION NLC Bluetooth Control: PIR/Daylight/Zoning
SILVAIR Enable Bluetooth Control: PIR/Daylight/Zoning/Monitoring
SG-20KV-UNV: 20KV Surge Protector
347-480V Step Down Transformer
