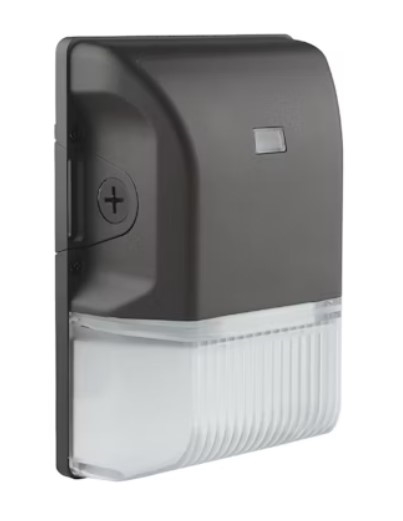

EnVisionLED LED-WPM-20W-TRI-F-BZ-PC - Wall Pack Mini w/PC 3CCT - 20W - 120-277V - 3-CCT 30/40/50K - Mini Wall Pack with Photocell - Bronze


EnVisionLED LED-WPM-20W-TRI-F-BZ-PC

Alternative Views:



Download The Installation PDF



Download The Spec Sheet

Price: $49.99

Stock Status: In Stock

Qty:

Description Technical Specs Shipping Time

Part Number: LED-WPM-20W-TRI-F-BZ-PC

Non-Dimmable


Wattage - 20w
Voltage - 120-277v
Selectable Color Temp - 30/40/50K
Lumens - 2,860lm
Beam Angle - 100°/Semi-Cutoff
BUG - B1-U3-G2
Average Rated Life (L70) - 70,000 Hours
Finish - Bronze

Height - 8.6"
Width - 5.8"
Depth - 3.1"

  • EnVisionLED M-Line: Mini Wall Pack
  • Lens: Clear acrylic with optics
  • Sturdy die-cast aluminum housing finished with corrosion free powder coat
  • Traditional metal-halide wall pack size, Instant-On to full brightness
  • Surge Protection: 6KV, Photocell Included, Three 1/2" Knockouts: (1) One on each side for convenient installation
  • UL Listed, DLC Listed, ROHS Compliant, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017,Wet Location Rated, Impact Rating: IK08
  • 5 year limited factory warranty
