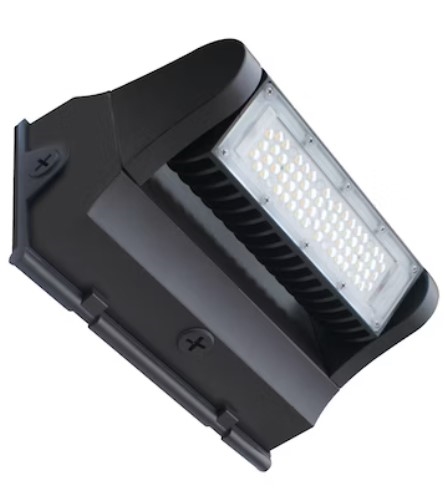

EnVisionLED LED-WPROT2-25WS-TRI-BZ - R-Line: Rotating Wall Packs - 25W - 3-CCT 30/40/50K - 120-277V - One Module - Bronze



Download The Installation PDF

Download The Spec Sheet

Price: $95.99

Stock Status: In Stock


Description Technical Specs Shipping Time
Part Number: LED-WPROT2-25WS-TRI-BZ


Wattage - 25w
Voltage - 120-277v
Selectable CCT - 30/40/50K
Lumens - 3,600lm
Beam Angle - 60°
Average Rated Life (L70) - 70,000 Hours
Finish - Bronze (custom finishes available, lead times vary)

Height - 6 1/2"
Width - 9 3/8"
Depth - 6 1/2"

  • EnVisionLED R-Line: Rotating Wall Packs: Sturdy die-cast aluminum housing finished with corrosion free powder coat.
  • 360° rotating heads, no tools needed, Face-Down: Cut-Off Dark Sky Compliant on 30K, Instant-On to full brightness
  • Lens: Clear acrylic with optics, Five (5) 1/2" knockouts: One (1) on each side for convenient installation, 3-Step MacAdam Ellipses
  • Built-in 10Kv Surge protection, One Module
  • UL Listed, DLC Listed, RoHS Compliant, Approved for CA T24, IESNA LM-79 and LM-80 tests available, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Wet Location, Impact Rating: IK08
  • 5 year limited factory warranty

  • Optional For Purchase Pre-Installed Factory Add-On's:

    90 Minute Emergency Battery Backup
    HB01-DMS-C: Bi-Level Motion + Daylight Sensor
    S-BMS-EXT-1: Bi-Level Motion + Daylight Sensor
    S-BMS-EXT-1-BT: Bi Level Motion + Daylight Sensor W/Bluetooth Control (ENVISION SMART APP)
    SG-20KV-UNV: 20KV Surge Protector
    Custom Finishes: Black, White, Gray Standard, Custom RAL Available: Prices/Lead Times Vary

    Call our Customer Service Line For Pricing/More Information: 877-235-0020. Prices are in addition to original product purchase price. Ask about additional lead times.
