Part Number: LED-WPROT2-40WS-40K-BZ
0-10V/Dimmable
Wattage - 40w
Voltage - 120-277v
Color Temp - 4000K
Lumens - 4,890lm
Beam Angle - 60°
Average Rated Life (L70) - 70,000 Hours
Finish - Bronze (custom finishes available, lead times vary)
Height - 6 1/2"
Width - 9 3/8"
Depth - 6 1/2"

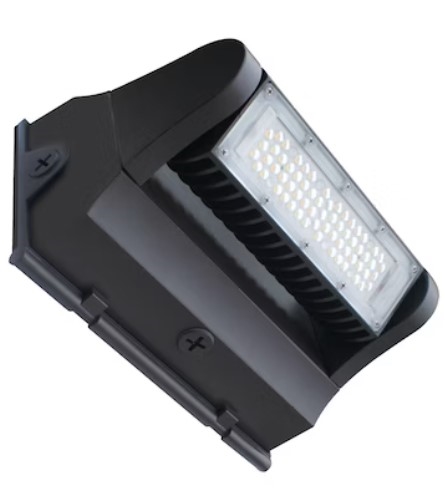

- EnVisionLED R-Line: Rotating Wall Packs: Sturdy die-cast aluminum housing finished with corrosion free powder coat.
- 360° rotating heads, no tools needed, Face-Down: Cut-Off Dark Sky Compliant on 30K, Instant-On to full brightness
- Lens: Clear acrylic with optics, Five (5) 1/2" knockouts: One (1) on each side for convenient installation, 3-Step MacAdam Ellipses
- Built-in 10Kv Surge protection, One Module
- UL Listed, DLC Listed, RoHS Compliant, Approved for CA T24, IESNA LM-79 and LM-80 tests available, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Wet Location, Impact Rating: IK08
- 5 year limited factory warranty
-
-
-
-
-
| Tech Specs |
|---|
|
| | | Voltage Rating | 120-277V | | Beam Angle | 60°
| | Wattage | 40 Watts | | Power Factor | >0.9 | | Dimmable | YES/0-10V | | Avg. Rated Life (L70) | 70,000 | | Lumens | 4,890LM | | Color Temp | 4000K | | CRI | >80 | | Operating Temperature | -40°F To 122°F
| | Manufacturer | EnVisionLED Lighting | | Item Type | R-Line: Rotating Wall Pack | | Finish | Bronze (Custom Finishes Available, Lead Times Vary) |
| -
-
-
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Optional For Purchase Pre-Installed Factory Add-On's:
90 Minute Emergency Battery Backup
HB01-DMS-C: Bi-Level Motion + Daylight Sensor
S-BMS-EXT-1: Bi-Level Motion + Daylight Sensor
S-BMS-EXT-1-BT: Bi Level Motion + Daylight Sensor W/Bluetooth Control (ENVISION SMART APP)
SG-20KV-UNV: 20KV Surge Protector
Custom Finishes: Black, White, Gray Standard, Custom RAL Available: Prices/Lead Times Vary
Call our Customer Service Line For Pricing/More Information: 877-235-0020. Prices are in addition to original product purchase price. Ask about additional lead times.
|
|
|
|
|
|
|
