Part Number: LED-WSC-UD-15W-5CCT-BL
Triac/Dimmable
Wattage - 15w
Voltage - 120v
Selectable CCT - 27/30/35/40/50K
Lumens - 1,000lm (500 Up/500 Down)
Avg. Rated Life (L70) - 50,000 Hours
Beam Angle - 120° (Standard)
Finish - Black
Depth - 1.4"
Length x Width - 5.2"

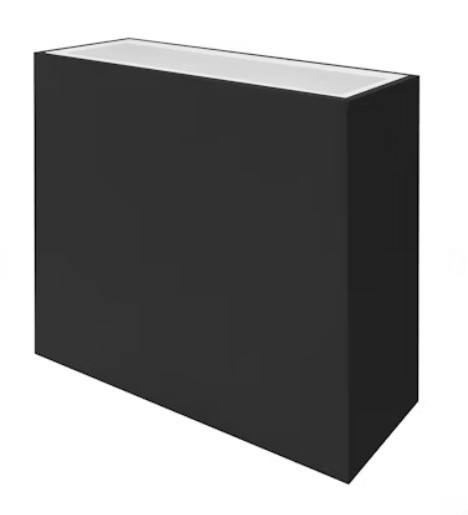

- EnVisionLED: M-Line: Modern Square Sconce Light: Up Light/Down Light
- Sturdy die-cast aluminum housing finished with corrosion free powder coat
- Ideal for indoor or outdoor use, Lens: Clear, Instant-On to full brightness
- 3-Selectable Light Options: Up Only, Down Only, Up and Down Light
- Easy Beam Angle Swap: available for field swap or at factory level
- Built in 6kV surge protection, Triac Dimmable on 120V
- Mounts to 3" or 4" junction box, Covers a standard 4" recessed j-box
- ETL Listed, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Wet Location IP65
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating
-
| -
120V-
| -
-
-
| Item Type | -
| Modern Square Sconce Light: M-Line | -
-
-
| Selectable Wattage | -
| 15 Watts | -
-
-
| Power Factor | -
- >0.9
| -
-
-
| Mounting | -
| 3" or 4" J-Box/Covers a Standard 4" Recessed J-Box | -
-
-
| Selectable CCT | -
| 2700K/3000K/3500K/4000K/5000K | -
-
-
Lumens-
| -
| 1,000LM | -
-
-
| Beam Angle | -
120° Standard
| -
-
-
- CRI
-
| -
| >90 | -
-
-
- Dimming
| -
| YES/UNV: 120V Triac | -
-
-
- Rated Life (L70)
| -
- 50,000 Hours
-
| -
-
-
- Ambient Operating Temp Range
-
| -
- -40° F to 122° F
| -
-
-
| Finish | -
| Black | -
-
-
-
|
|
|
|
 |
|
 |
|
