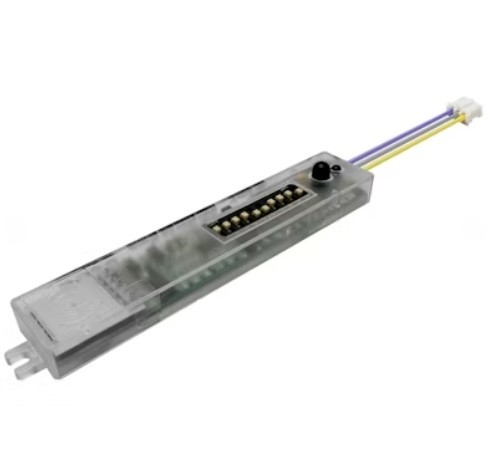

Part Number: S-BMS-INT-1
Bi-Level Motion Sensor
Motion Sensor - Microwave
Input Power - 12-24V DC
Control Output - 0-10V Max., 25mA Sinking Current
Mounting Height - 13ft. (4m) Max.
Detection Angle - 360°
Operating Temperature - -40°F ~ 158°F
- Localized Lighting Control: Light-Level schedules, preferences and profiles for each fixture are wirelessly communicated at system setup and stored for continuous operation.
- Occupancy/Vacancy/Manual: A microwave sensor combined with ambient with 3 different mode options.
- Daylight Harvesting: Captured ambient light information is locally processed to raise and lower light levels based on available daylight.
- Room and Zone Control: Pairs with room switches for code compliant manual-on or auto-off capability. Sensors can be grouped into zones that share occupancy sensing data and coordinate light control based on detected motion.
- Ideal for use with EnVisionLED LED-CBT. 12V Aux Required (Remote Optional - Sold Separately)
| Tech Specs |
|---|
|
| | | Input Power | 12-24V DC | | Detection Angle | 360°
| | Motion Sensor | Microwave Sensor | | Control Output | 0-10V Max., 25mA Sinking Current | | Item Type | Bi-Level Motion Sensor w/ Daylight Harvesting | | Width | 0.73" | | Height | 0.33" | | Approvals | UL Certified | | Manufacturer | EnVisionLED | | Operating Temp | -40° F ~ 158° F | | Length | 4.13" |
|
|
|
