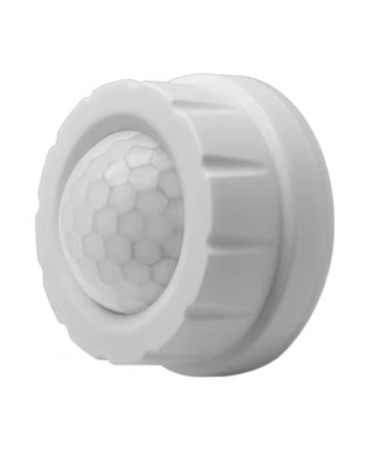

Part Number: S-TWC-PIR-SL
S-TWC-PIR-S allows for individual luminaire control and is equipped with both occupancy and daylight sensing. It utilizes a Bluetooth Low Energy (BLE) mesh network. Commissioning can be set through the SILVAIR mobile app or desktop site.
Input Voltage - 12-24V DC | 50mA
Operating Temperature - -4° - 104°F
360° Detection
Max Bluetooth Range: 328' line of sight
-Highly dependent on surrounding environment
-Bluetooth test recommended for range accuracy
IP65 - Wet Location Rated
Max Mounting Height - 40ft
Connect up to 3,000 devices on a zone
Finish - White
- PIR Motion Sensor: Ideal for indoor environments with clear lines of sight to the area of interest. Detects warm objects, good for high vibration, areas of metal.
- Daylight Sensor: controls power consumption of the fixtures based on sunlight levels.
- Magnetic Reset: touch the top part of the sensor for 5 seconds
- Include parameter profiles, dimming control, real-time sensor feedback
- UL Listed, DLC NLC Listed ID NSLVR23CNTRL, Bluetooth, CA Title 24 Approved, FCC CFR 47, GCC Part 15, Subpart B:2017, UL1376
|
|
|
 |
|
 |
|
