Part Number: 9564
Part Number Description: FXVTL100SW/96FR/850
0-10V Dimming
Selectable Wattage - 60/80/100w
Voltage - 120-277v
Color Temp - 5000K
Lumens - 8,108/10,400/13,586lm
Replaces - 2x 110W T12/6 x 32W T8
NEMA Enclosure Type - Type 4X
Rated Life L70 - 50,000 hours

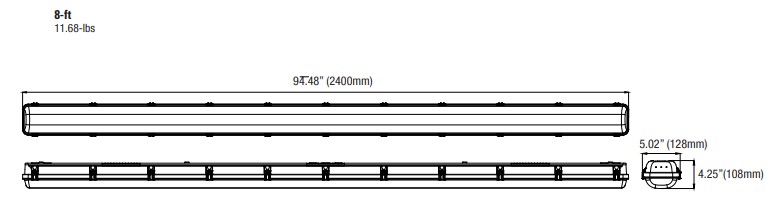

Height - 4.25" (108mm)
Width - 5.02" (128mm)
Length - 94.5" (2400mm)
Maintaining peak visibility in demanding industrial environments is easy with the NaturaLED 9564 - FXVTL100SW/96FR/850 - Vapor Tight Linear - Selectable Wattage 60/80/100W - 5000K - 8FT - 120-277V - White from USA Light. This 8-foot powerhouse is specifically engineered for areas prone to dust and moisture, making it the best interior lighting for parking structures, car washes, and warehouses. As your reliable commercial lighting supplier, we offer this LED lighting to ensure your facility remains safe and brilliantly lit.
Key characteristics of this fixture include a rugged, impact-resistant housing and selectable wattage settings, allowing you to choose between 60W, 80W, or 100W based on your ceiling height. This commercial interior lighting solution delivers a crisp 5000K daylight temperature, which is proven to enhance safety and focus. By sourcing through our wholesale commercial lighting channels, you receive a 120-277V universal driver and superior lumen maintenance. Whether your project requires the reliability of low-voltage interior lighting components or a heavy-duty vapor-tight installation, this fixture provides the durability and energy efficiency required for long-term industrial use. Order today.
- NaturaLED Linear Vapor Tight is housed in a polycarbonate silicon perimeter gasket with brackets for mounting
- Engineered for powerful lighting, the IP66-rated LED Vapor Tight Linear Fixture is designed to replace fluorescent strip fixtures
- Using 65% less energy and operating for up to 50,000 average life hours, these fixtures come with selectable wattage and color temperatures
- Designed for maximum operation in a commercial environment, lighter-weight housing for easy installation
- Stainless steel hasps and clips, Surge Protection: 4KV, Manufacturer's Suggested Mounting Height: 10-20ft
- Optional For Purchase: Microwave Motion Sensor/Remote Programmable Microwave Motion Sensor, Remote Programmer, Mounting Bracket, Emergency Driver, Surge Protector, Wire Guard
- DLC Listed, ETL/ETL Sanitation Rated, NEMA Enclosure Type 4X, FCC, IP66, LM79, LM80, RoHS Compliant, CA Title 24
- 5 year limited factory warranty
| Tech Specs |
|---|
|
| | | Voltage Rating | 120-277V | | Fixture Length | 8' | | Selectable Wattage | 60 Watts/80 Watts/100 Watts | | Lumens per Watt | 130 | | NEMA Enclosure Type | Type 4 Enclosure (4X) | | Length | 94.5" (2400mm) | | Width | 5.02" (128mm) | | Lumens | 8,108LM/10,400LM/13,586LM | | Selectable CCT | 5000K | | CRI | >80 | | Dimmable | YES/0-10V | | Ambient Operating Temp Range | -40° F to 122° F | | Equivalent | 2 x 110W T12/6 x 32W T8 |
|
|
|
