3" Shallow Low Voltage - Non-IC Remodel Housing

Part Number: US-R-EC331

Small aperture, low voltage, thermally protected remodel housing. For fast andeasy installation in existing plaster or mechanical ceilings from 1/2” to 1-3/8”thick. Non-insulated ceilings or where insulation can be kept 3” from the housing.Three remodel clips are easily retractable for fixture removal if necessary.Accommodates up to 35W MR16 lamps.

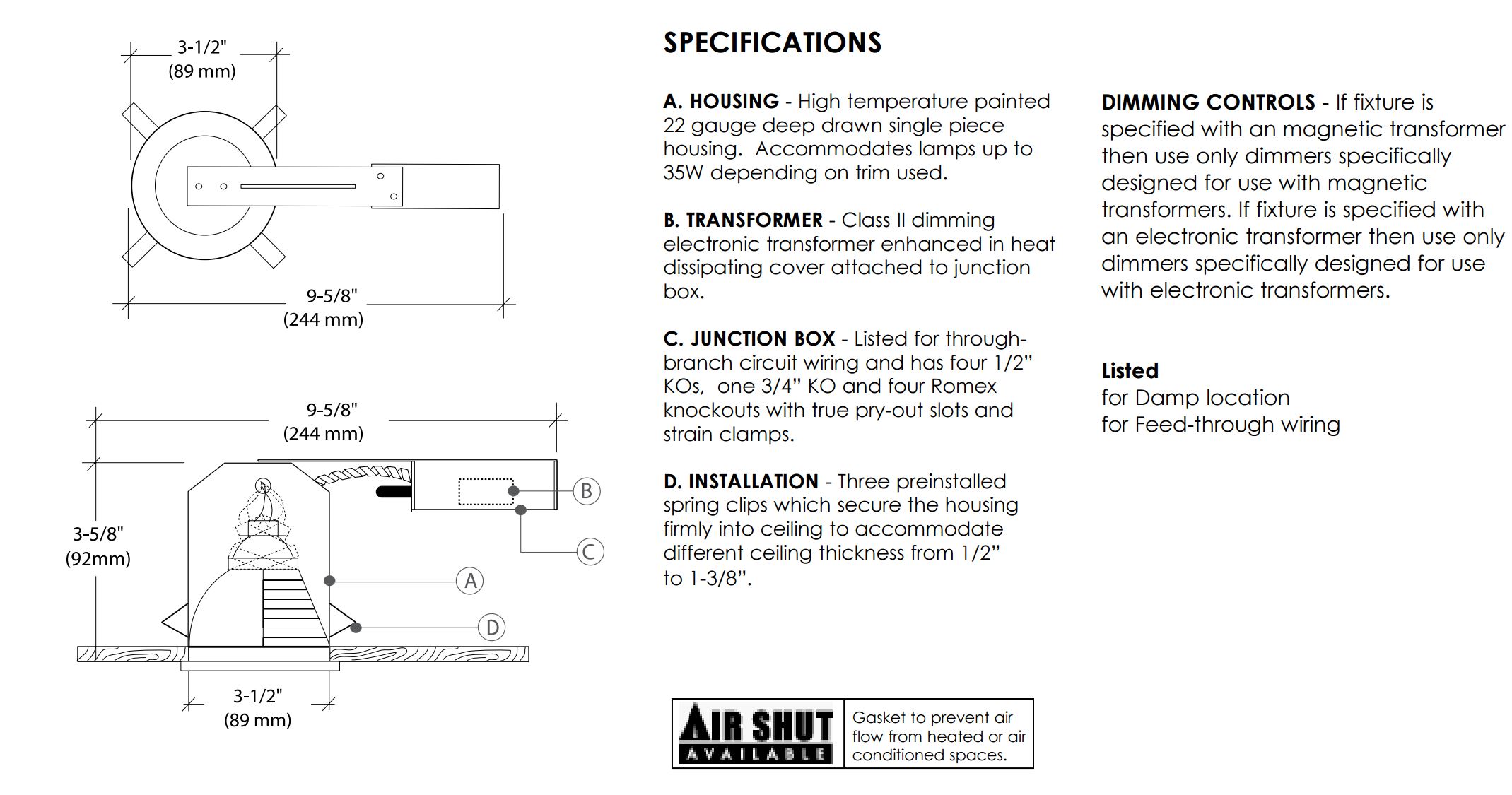

HOUSING - High temperature painted 22 gauge deep drawn single piece housing. Accommodates lamps up to 35W depending on trim used

INSTALLATION - Three preinstalled spring clips which secure the housing firmly into ceiling to accommodate different ceiling thickness from ½" to 1-3/8".

JUNCTION BOX - ETL listed for through-branch circuit wiring and has four ½" KOs, one ¾" KO and four Romex knockouts with true pry-out slots and strain clamps.

TRANSFORMER - Enhanced in heat dissipating cover, to provide noise free operation. Attached to junction box cover so it may be serviced from below the ceiling. Thermally protected E-Class II dimming electronic transformer.

• Integral low voltage transformer to prolong lamp life and increase lighting quality.
• Thermally Protected Non-IC remodel housing.
• Can be installed from below the ceiling
• Three preinstalled spring clips secure the housing firmly into ceiling to accommodate different ceiling thickness from ½" to 1-3/8".
• Designed for accent and task lighting applications
• Dependable, favorable design and effortless installation.
• 3-5/8" height allows use in 2" x 4" joist construction
• Unit clips through 3-½" ceiling opening

OPTIONS
1. AIR-SHUT
• Gasket to prevent air flow from heated or air conditioned spaces.
• Meets all national air flow requirements.

ETL AND C-ETL LISTED
For Damp location
For Feed-through wiring
