Part Number: 15781

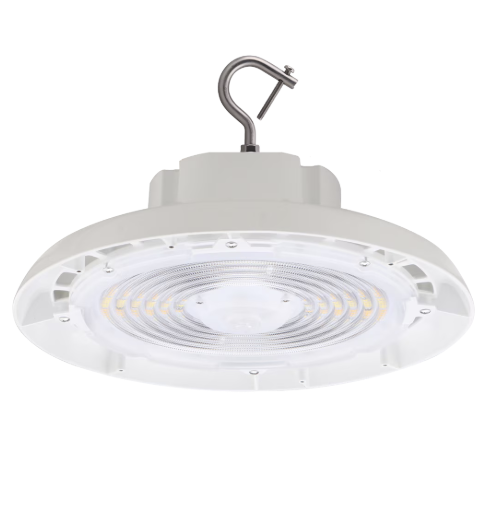

Part Number Description: BAYE3-PS240-FCCT-H-WH
0-10V/Dimmable
Selectable Wattage - 240/200/180 Watts
Voltage - 120-347v
Selectable CCT - 30/40/50K
Lumens - 36,000/30.000/27,000lm
Projected Life (L70) - 100,000 Hours
Replaces - Up to 750W HID
Beam Angle - 90°
Finish - White
Height - 8.2" (208mm)
Width - 12.8" (325mm)
- Die cast aluminum housing and impact resistant lens for durable construction
- Accessories included in the box: 10'/600V rated power and dimming cord, Mounting Hook
- Prismatic reflector, cone lens, aluminum reflector accessories available for focused light distribution (sold separately)
- Controls Ready design for stand alone and networked control options
- DLC Premium Listed, Surge Protection: 6kV Included
- 5 year limited factory warranty
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating
| -
| 120-347V | -
-
-
- Surge Protection
| -
| 6kV Included | -
-
-
- Selectable Wattage
| -
| 240 Watts/200 Watts/180 Watts | -
-
-
- Lumens per Watt
-
| -
- 150
| -
-
-
- Lumens
-
| -
| 36,000LM/30,000LM/27,00LM | -
-
-
| Selectable CCT | -
| 3000K/4000K/5000K | -
-
-
- CRI
-
| -
| >80 | -
-
-
- Rated Life(L70)
| -
100,000 Hours-
| -
-
-
| Beam Angle | -
| 90° | -
-
-
| Dimmable | -
| YES | -
-
-
-
|
|
|
|
