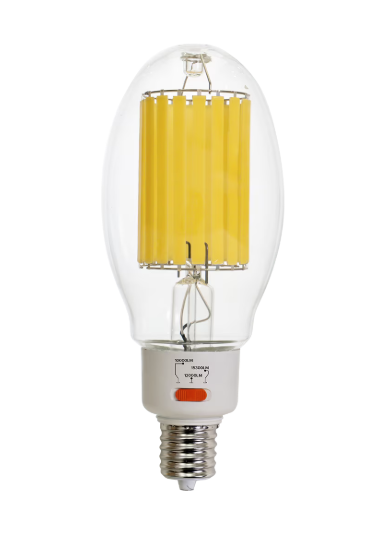

EiKO 16330 LED HID Replacement Filament Lamp delivers high-quality, energy-efficient illumination and is a direct-fit retrofit and upgrade solution for traditional HID lamps. The ANSI bulb shape with Omni-directional light distribution ensures direct form, fit, and function matching HID lamps. The high efficacy design consumes up to 5 times less power, delivering energy savings while maintaining the aesthetic of traditional HID lamps.
The 16330 has an average rated life of 50,000 hours and is rated for use in enclosed fixtures. Designed with robust environmental ratings and available with PowerSET and ColorSET features allows for field customization and hassle-free retrofit installation. It replaces up to 450W traditional HID lamps in EX39 base.
Key Features
- Superior Thermal Management - Glass enclosure provides stable heat dissipation
- Direct HID Replacement - Compatible with existing HID sockets
- Superior Vibration Resistance - Solid-state construction is more robust
- HID-Like Light Distribution - Curved glass design for uniform light diffusion
- Universal Mounting Position - Suitable for base up, base down, or horizontal installations
- Type B Ballast Bypass Design - Direct AC connection
- 5 year limited factory warranty
Specifications
- Manufacturer: EiKO
- Part Number: 16330
- Model: HIDF-PS85-850-U-EX39
- Selectable Wattage: 85/68/60 Watts
- Voltage: 120-277V
- Lumens: 15,525/12,580/11,000 Lumens
- Color Temperature: 5000K
- CRI: >80
- Efficacy: Up to 200 lm/W
- Base Type: EX39 Base
- Incandescent Equivalent: 450W
- Rated Life (L70): 50,000 Hours
- Location Rating: Enclosed Fixture
- Bulb Type: ED37
