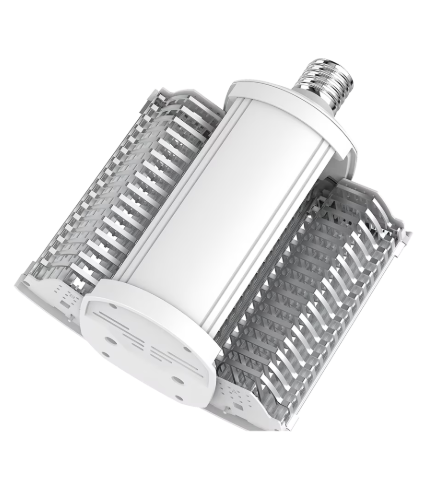

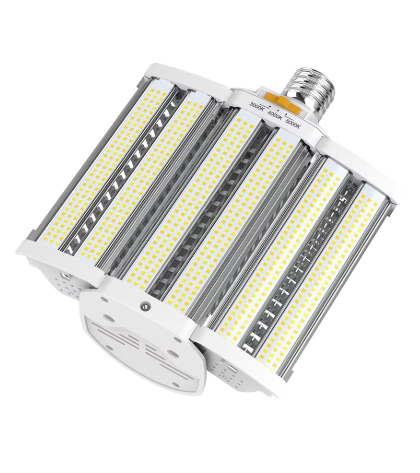

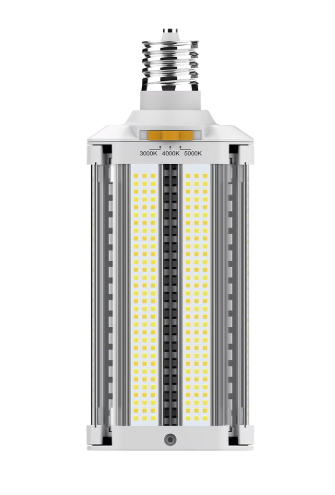

The EiKO 16426 - HIDSP-AL-110W-8FCCT-U-EX39 is a dependable
110 Watt LED HID Replacement lamp engineered to replace traditional Metal Halide or High-Pressure Sodium HID bulbs while delivering long life and energy savings. Designed with a EX39 Mogul base and selectable color temperature, this LED lamp provides flexibility and a wide range of illumination choices for a variety of industrial and commercial lighting applications.
Performance & Light Output
This efficient LED lamp uses 110 watts of power while producing approximately 16,500 lumens of light, making it an energy-saving alternative to 400-watt Metal Halide or High-Pressure Sodium HID Lamps. Its 180° beam angle offers a balanced flood distribution, and the selectable color temperature make this lamp ideal for all types of lighting applications.
Key Features
- 110W LED replaces 400W HID lamp
- Selectable color temperature
- EX39 Mogul base for easy installation
- 180° beam angle
- Retrofit lamp for Metal Halide or High-Pressure Sodium
- Rated life up to 25,000 hours
- DLC Listed, IP64, UL Certified, RoHS Compliant, FCC Compliant
- Suitable for enclosed and Damp Locations
Applications
- Streetscapes and Roadways
- Sports Fields and Stadiums
- Area Security Lighting and Parking Areas
- Airports
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
| Voltage Rating | -
| 120-277V | -
-
-
| Base Type | -
| Mogul EX39 | -
-
-
| Wattage | -
| 110 Watts | -
-
-
| Lumens Per Watt | -
| Up To 150 LM/W | -
-
-
| Avg. Rated Life (L80) | -
| 50,000 Hours | -
-
-
- MOL in/mm
| -
- 11.0 (280mm)
| -
-
-
- MOD in/mm
| -
| 9.1 (230mm) | -
-
-
| Lumens | -
| 16,500LM | -
-
-
| Selectable CCT | -
| 3000K/4000K/5000K | -
-
-
- CRI
| -
| 80+ | -
-
-
- Equivalent
| 400 Watt High Pressure Sodium or 400 Watt Metal Halide | -
-
-
- Ambient Operating Temp Range
| -
| -30° C (-22° F) to 45° C (113° F) | -
-
-
| Lens Type | -
| Fireproof Clear PC Lens | -
-
-
-
|
|
|
|
 |
|
 |
|
