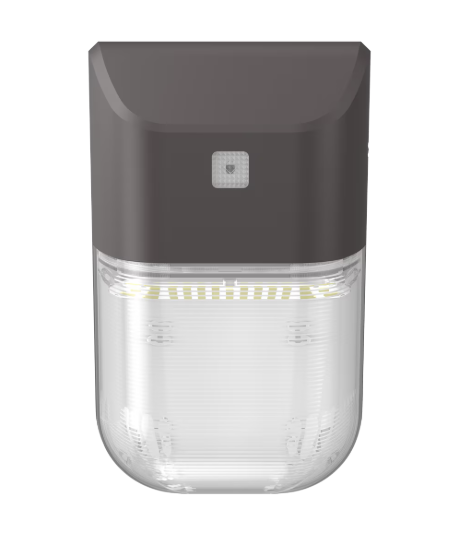

EiKO 15588 Mini Wall Pack features FieldCCeT, Color Select Technology, designed to simplify SKU management and enhance field customization. The FieldCCeT system offers five selectable CCeT settings, providing versatility for various lighting applications.
The 15588 is mounted to a junction box using a hinged door mounting plate, secured with a single screw to lock the wall pack in place. This mini wall pack comes with a pre-installed photocell that can be disabled via a DIP switch and has an average rated life of 25,000 hours it is optimized for standard 120V input voltage.
Key Features
- Mini Wall Pack
- Optimized for standard 120V input voltage
- Selectable Color Temperature
- Surge Protection: 1kV included
- Diffused polycarbonate lens for reduced glare
- Rated Life 25,000 hour
- Pre-installed photocell, Photocell can be disabled
Specifications
- Manufacturer: EiKO
- Part Number: 15588
- Model: WPM-20W-8FCCT-D
- Wattage: 20W
- Voltage: 120V
- Lumens: 2,400 Lumens
- Selectable CCT: 2700/3000/3500K/4000K/5000K
- CRI: >80
- Efficacy Up To: 120LPW
- Lens Type: Polycarbonate
- Surge Protection: 1kV
- Rated Life: 25,000 Hours
- Manufacturer Warranty: 3 Year Limited Factory
- Equivalent: 100W HID
