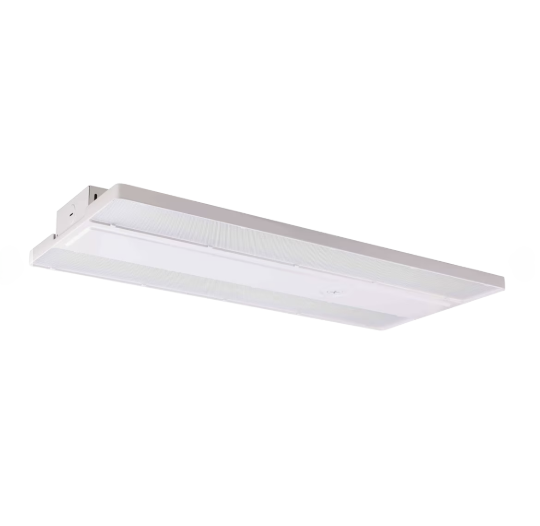

EiKO 15644 PRO Linear High Bay fixture is the smart choice for reliable, high-performance lighting. Engineered for superior light distribution, it delivers even illumination with precise beam control. Its advanced optics provide a 90 degree wide beam distribution to light up large areas effectively, while optional 65 degree lens is perfect for warehouse aisle lighting.
Featuring 4 fixed power and CCT SKUs, the 15644 LH1 Pro excels in demanding spaces. Accessories included in the box are a 10'/600V rated power cord and a 6.5' aircraft cable and V hooks giving installers the options they need for a wide variety of applications in one fixture.
Key Features
- PRO Linear High Bay
- Standard 0-10V Dimming with Dim-To-Off
- Selectable Wattage/CCT
- Surge Protection: 6kV included
- Diffused polycarbonate lens for reduced glare
- Rated Life (L70) 100,000 hour
- Controls ready design for standalone and networked control options
Specifications
- Manufacturer: EiKO
- Part Number: 15644
- Model: LH1-PS440-FCCT-H
- Selectable Wattage: 440/400/380/360W
- Voltage: 120-347V
- Lumens: 66,000/60,000/57,000/54,000 Lumens
- Selectable CCT: 4000K/5000K
- CRI: >80
- Efficacy Up To: 150LPW
- Lens Type: Polycarbonate
- Surge Protection: 6kV
- Rated Life (L70): 100,000 Hours
- Manufacturer Warranty: 5 Year Limited Factory
- Equivalent: 6 Lamp T5 HO and Up to 1,000W HID
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Voltage Rating/Type
| -
- 120-347V
| -
-
-
| Beam Angle | -
90°
| -
-
-
| Selectable Wattage | -
| 440 Watts/400 Watts/380 Watts/360 Watts | -
-
-
| Lumens Per Watt | -
| Up To 150 LM/W | -
-
-
- Lumens
-
| -
| 66,000LM/60,000LM/57,000LM/54,000LM | -
-
-
| Selectable CCT | -
| 4000K/5000K | -
-
-
- CRI
-
| -
| >80 | -
-
-
- Avg. Rated Life 70% (L70)
| -
100,000 Hours-
| -
-
-
| Equivalent | -
| 6 Lamp T5 HO/Up To 1,000W HID | -
-
-
- Lens
| -
| Diffused Impact Resistant Polycarbonate | -
-
-
-
|
|
|
|
 |
|
 |
|
