EiKO 15593 Jelly Jar delivers high-quality, energy-efficient illumination with excellent color rendering and a frosted glass lens. Designed with a die-cast aluminum housing, powder coated finish, silicone seals, and 1/2" trade size knock outs this fixture is made to last and ensures durable low maintenance performance.

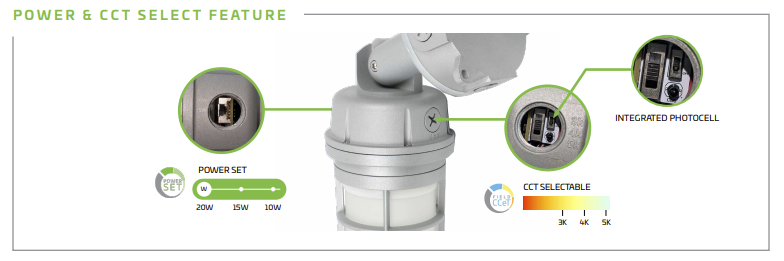

The 15593 has an average rated life of 50,000 hours and is IP65 rated for Wet Locations. The integrated photocell with a manual on/off switch, PowerSET selectable wattage feature, and FieldCCeT selectable color temperature gives you all the flexibility and options you need in one fixture.
Key Features
- Wattage/CCT Selectable Jelly Jar
- Integrated photocell with manual on/off
- One SKU for simplified stocking
- Die-cast aluminum construction with a frosted glass lens
- Can be wall or ceiling mounted
- Silicone seals to ensure vapor-proof performance
- Knock-outs are 1/2" trade size for conduit
Specifications
- Manufacturer: EiKO
- Part Number: 15593
- Model: JJ-PS20-8FCCT-U
- Selectable Wattage: 20/15/10 Watts
- Voltage: 120-277V
- Lumens: 1,600/1,200/800 Lumens
- Selectable CCT: 3000K/4000K/5000K
- CRI: >80
- Efficacy: Up To 80LPW
- Warranty: 5 Year Limited Factory
- Rating: Wet Location/IP65
- Rated Life (L70): 50,000 Hours
- Location Rating: Indoor/Outdoor
- Dimmable: NO
| Tech Specs |
|---|
|
| | | Voltage Rating | 120-277V | | Length (Vertical) | 15.06" | | Selectable Wattage | 20 Watts/15 Watts/10 Watts | | Lumens | 1,600LM/1,200LM/800LM | | Lens | Frosted Glass | | Manufacturer | EiKO | | Avg. Rated Life (L70) | 50,000 hours | | Mounting | Wall or Ceiling | | CRI | >80 | | Efficacy | Up To 80LPW | | Dimmable | NO | | Color Selectable | 3000K/4000K/5000K | | Certifications | ETL Listed, RoHS Compliant, FCC Compliant, ICES-005 Compliant, Wet Location, IP65 |
|
|
|
 |
|
 |
|
