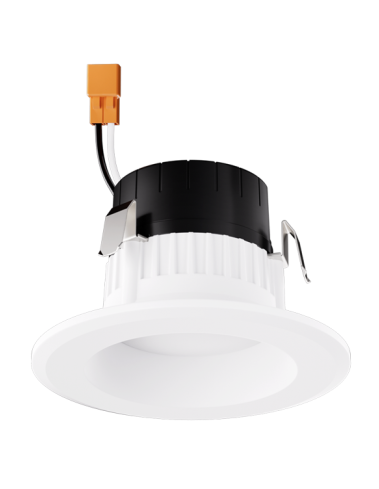

Part Number: EL317CT5W
ELCO Lighting's inserts are engineered with energy-efficient LED technology that produces even illumination with an incredible 93+ CRI. Designed to be used for New Construction, Remodel, and Retrofit applications, these inserts are rated for a life of 50,000 hours, and meet the Title 24 and Energy Star requirements. Suitable for IC and Non-IC housings manufactured by ELCO and others.
Dimmable
Wattage - 11w
Voltage - 120v
Lumens - 1,040lm
Selectable CCT - 27/30/35/40/50K
Beam Angle - 90°
Finish - White
- Fits ELCO 3" Dedicated LED Recessed Housings for New Construction and Remodel
- Quick connect for use with ELCO housings EL390ICA, EL390RICA, EL39FICA
- Soft white lens provides smooth lumen distribution and eliminates LED pixilation
- Deep set LED trim reduces glare while providing area illumination
- Diecast construction provides lasting durability
- Energy Star Certified
- UL Listed for Wet Locations, UL Listed 1598 Luminaire
- CA Title 24 JA8-2019 compliant, RoHS Compliant
- 5 year limited factory warranty

-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Dimmable
-
| -
- Yes
-
| -
-
-
- Item Type
-
| -
- Recessed Lighting LED Retrofit Trim
-
| -
-
-
- Item Style
-
| -
- Recessed, Reflector
| -
-
-
- Manufacturer
-
| -
- ELCO Lighting
| -
-
-
- Warranty
-
| -
| 5 year Limited Factory | -
-
-
| Finish | -
- White/White
| -
-
-
-
| CRI | -
- 93+
| -
-
-
| Voltage | -
| 120V | -
-
-
| Wattage | -
| 11 Watts | -
-
-
| Lumens | -
| 1,040LM | -
-
-
- Color Temperature
-
| -
| 2700K/3000K/3500K/4000K/5000K | -
-
-
-
|
|
|
|
 |
|
 |
|
