The

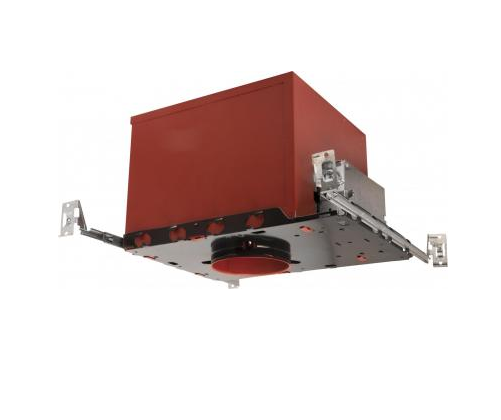

ELCO EL49FICA-GU10 4" LED Fire Rated New Construction Housing combines adjustable design with durable construction. This 4" Double Wall IC Airtight housing offers up to 2 hours of fire rated performance and comes with a GU10 socket for LED and traditional GU10 lamps for easy installation. Designed for ceiling plenums where 2 x 8 joists or taller are used this housing is versatile and can be used in T-grid and drop ceilings as well. Additionally, this fire rated housing has an integrated Non-combustible insulation that acts as a sound barrier minimizing sound transfer between floors and is ideal for residential and commercial applications.
Key Features
- 35W LED LED Fire Rated New Construction Housing
- Compatible with ELCO 4" GU10 trims
- Meets Title 24 Reuirements
- cUL Listed for 2-Hour Fire Resistance to meet and exceed strict fire safety codes
- Trims and Inserts Sold Separately
Ideal Applications
- Multifamily Housing
- Condominiums and Hotels
- Healthcare Facilities
- T-Grid and Drop Ceilings
- Projects requiring fire-rated recessed lighting
Specifications
- Brand: ELCO Lighting
- Model: EL49FICA-GU10
- Technology: Fire Rated
- Application: IC and Non-IC Conditions
- Hanger Bars: Pre-Installed
- Rated Locations: Damp and Wet with Select Trims
| Tech Specs |
|---|
|
| | | Fire Rating | Up to 2 Hours | | Hanger Bars | YES/Pre-Installed | | Item Type | 4" LED Fire Rated New Construction Housing | | Listings | cUL Listed for Damp Locations and Wet Locations with Select Trims, cUL Listed for Direct Contact with Insulation and Combustible Materials, cUL Listed for Feed Through, Sound Rated | | Manufacturer | ELCO Lighting | | Finish | Red | | Single/Double Wall | Double Wall IC Rated | | Wattage | 35 Watts | | Height | 7 3/4" | | For Use With Ceiling Constructions | L505, L511, L536, L538, L541, L556, L577, M500, M510, M521, and M543 | | Airtight | In Accordance with ASTM E-283, IC and Non-IC conditions | | Voltage | 120V |
|
|
|
 |
|
 |
|
