ELCO ERT487CT5BB - 4" LED High Lumen Square Reflector Insert with 5-CCT Switch and 3 Lumen Switch - 10/14/18W - Selectable CCT - 120/277V - Black

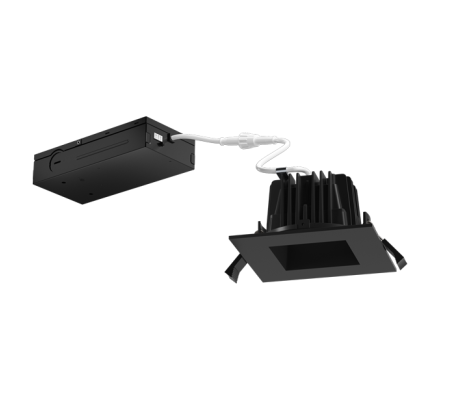

ELCO ERT487CT5BB 4in square LED high lumen reflector insert with 5-CCT and 3-lumen selectable switch, black finish

CUSTOMER REVIEWS

Download The Spec Sheet

Price: $71.90

Qty:

Description

Technical Specs

Shipping Time

The ELCO ERT487CT5BB is a 4" LED high lumen square reflector insert designed for quick and easy installation without a housing for both new construction and remodel applications, giving you the options you are looking for in one fixture. The manual switch allows you to choose between 2700K, 3000K, 3500K, 4000K, and 5000K. This IC Rated fixture can be installed indoors or outdoors.

Key Features

10/14/18W Wattage Selectable High Lumen Square Reflector Insert
IC Airtight For use with direct contact to insulation
Designed to fit plenums as shallow as 3"
New Construction application requires mounting plate or frame
Remodel applications require no additional accessories

Ideal Applications

General Recessed Lighting
Commercial Lighting
Residential and Multifamily
Wet Location allows for use indoors and outdoors
Office, Hallways, and Meeting Rooms

Specifications

Brand: ELCO Lighting
Model: ERT487CT5BB
Technology: Wattage Selectable/5-CCT Selectable
Application: Wet Location Rated Downlight
Housing: Square LED High Lumen Reflector Insert
Voltage Rating: 120V/277V

Features

The ELCO 4" LED High Lumen Square Reflector Insert with 5-CCT and 3-Lumen Switch.
LED Driver
- Driver connects directly to 120/277V power supply.
- Maximum hole cut-out should not exceed 4 1/4" for this product
- IC rated driver and fixture are tested and approved for direct contact with insulation
- Isolated driver integrated inside aluminum remote box with two knockouts with slots for pry-out
Features
- Polycarbonate lens diffuses light evenly throughout space with no LED pixelation
- Suitable installation for T-grid and drop ceiling applications
- Plenum rated cable connector to connect from module to remote driver box
- Designed for super shallow ceiling plenums without any housing.
- High strength steel spring clip for easy installation. Hole cut out template provided for accurate hole size for proper trim installation
- Works with 120V Triac and ELV type dimmers or 120/277V with 0-10V dimmability on 120/277V and Triac/ELV on 120V side. Dims down to 10%
- For full list of dimmers, refer to the Dimmer Compatibility list
Listings
- IC-Rated Airtight for direct contact with insulation
- ENERGY STAR Compliant
- Indoors or Outdoors
- CA Title 24 JA8-2022-E Compliant
- ETL Listed for Wet locations
Specifications
- 10/14/18 Wattage Selectable
- 1,000/1,400/1,800 Lumens
- 90+ CRI
- CCT Selectable
